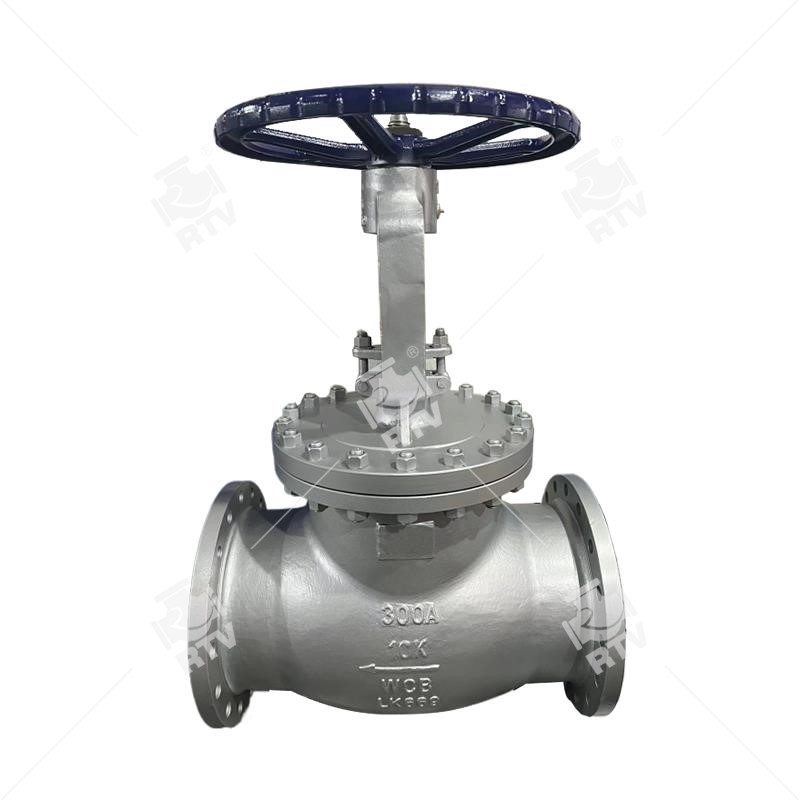

JIS Globe valve

JIS Globe valve

The Japanese standard globe valves produced by RTV Ruitong Valve and the JIS Japanese standard flange globe valves are mainly used to connect or cut off the medium in pipelines. They are suitable for various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with a nominal pressure of 10K-20K and a working temperature of -29~550 ℃.

The Japanese standard globe valves produced by RTV Ruitong Valve and the JIS Japanese standard flange globe valves are mainly used to connect or cut off the medium in pipelines. They are suitable for various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with a nominal pressure of 10K-20K and a working temperature of -29~550 ℃. They can cut off or connect the medium in pipelines. The driving methods include manual, gear transmission, electric, pneumatic, etc. A shut-off valve is a commonly used shut-off valve and is generally not used to regulate flow.

Globe valves are suitable for a wide range of pressure and temperature, but are generally used for medium and small diameter pipelines.

Standard for Japanese standard shut-off valves:

Design and manufacturing according to JIS B2071

Structural length according to JIS B2002

The flange connection size shall be in accordance with JIS B2212 B2214

Inspection according to JIS B2003

Japanese standard globe valve, JIS Japanese standard flange globe valve design standard



JIS 10K/20K Globe Valve WCB/SS

Size Range: 1/2“-24”/DN15-DN600

Operate: Handhweel,Bevel gear,Pneumatic,Electric-Motorized

Working Pressure: JIS 10K/20K

Body Materials: WCB/CF8/CF8M

Disc Materials: WCB 13Cr/WCB STL/CF8/CF8M

Bonnet Materials: WCB/CF8/CF8M

Stem Materials: 45#/2Cr13/F304/F316

Seat Ring Materials: A105 13Cr/A105 STL/CF8/CF8M

Stem Nut: DI/Copper Alloy

Application for: Water,Oil &Gas

Shell test:1.5 times

Seat test:1.1 times

Payment: T/T, D/P or L/C

Lead Time:5-30 days
