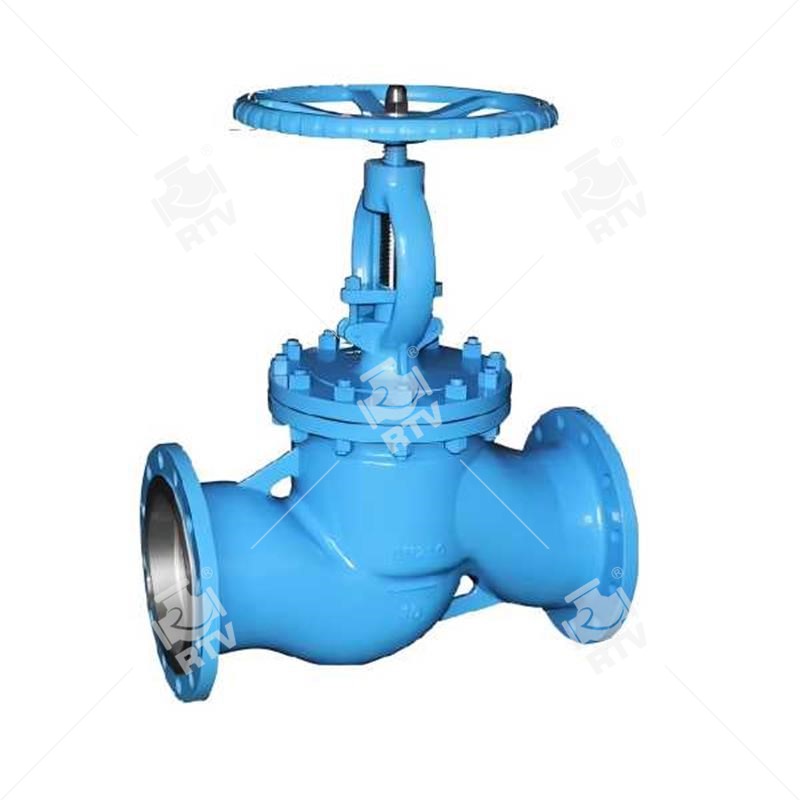

Steel DIN3356 Globe vlave

Steel DIN3356 Globe vlave

The German Steel DIN3356 Globe vlave  standard Globe valves produced by Ruitong Valve, as well as the DIN series globe valves PN10-PN120, are used to cut off or connect media in pipelines with operating temperatures of -29~425 ℃ (carbon steel) and -40~500 ℃ (stainless steel).

Quick Detail

Design Standard: DIN 3356.

Body Material: GS-C25.

Nominal Diameter: DN200 (8 Inch).

Pressure: PN40.

End Connection: RF.

Face to Face: EN 558.

Working Temperature: -29℃~ 425℃.

Mode of Operation: Handwheel.

Test and Inspection: EN 12266.



Product Range

Body Material: Carbon steel, Stainless steel, Alloy steel.

Normal diameter: 1/2"~24" (DN15~DN600).

End connection: BW, Flanged.

Pressure range: 150lbs~2500lbs (PN16~PN420).

Operation: Handwheel, Gearbox, Electric, Pneumatic.

Working temperature: -29℃~ 560℃.



Valve descriptions

Name: ASTM A351 CF8M Small Size Globe Valve.

Design: DIN 3356.

Body: ASTM A351 CF8M.

Nominal size: DN50.

Nominal class: PN40.

Connection ends: RF Flanged ends.

Face to face: EN 558-1/line 1.

Test and inspection: EN 12266-1.



Other features

Full bore

Rising stem

Bolted bonnet

Flat sealing

Short stroke for easy opening or closing
