Lug Butterfly Valve (Through Shaft Without Pin) Introduction
The Lug Butterfly Valve (Through Shaft Without Pin) is an essential component for fluid control in pipelines.. With a through shaft design and no need for pins, this valve offers increased efficiency and reduced maintenance. This valve excels in flow control, with its through shaft design providing a strong and stable connection. Its lug feature allows for easy installation and maintenance.Crafted with precision and durability, this valve is a reliable choice for industrial applications.

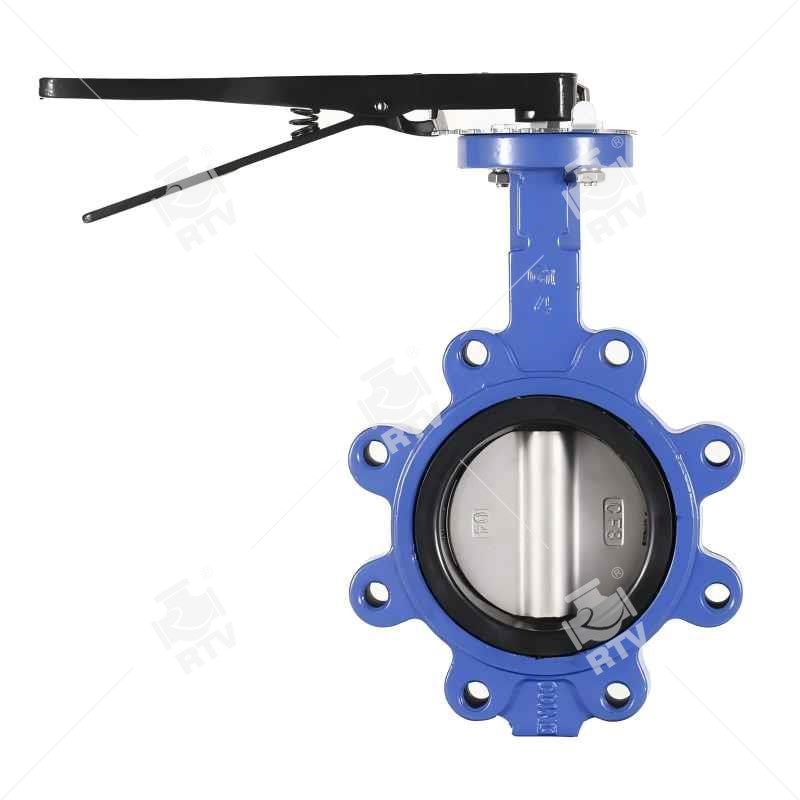

Lug Butterfly Valve (Through Shaft Without Pin) Drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Lugger |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flanges | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical, Processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFENITON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M DI/Ni/SS304 |
| 5 | Bushing | PTFE/Bronze |
| 6 | O Ring | NBR/EPDM |
Dimensions:(mm)
