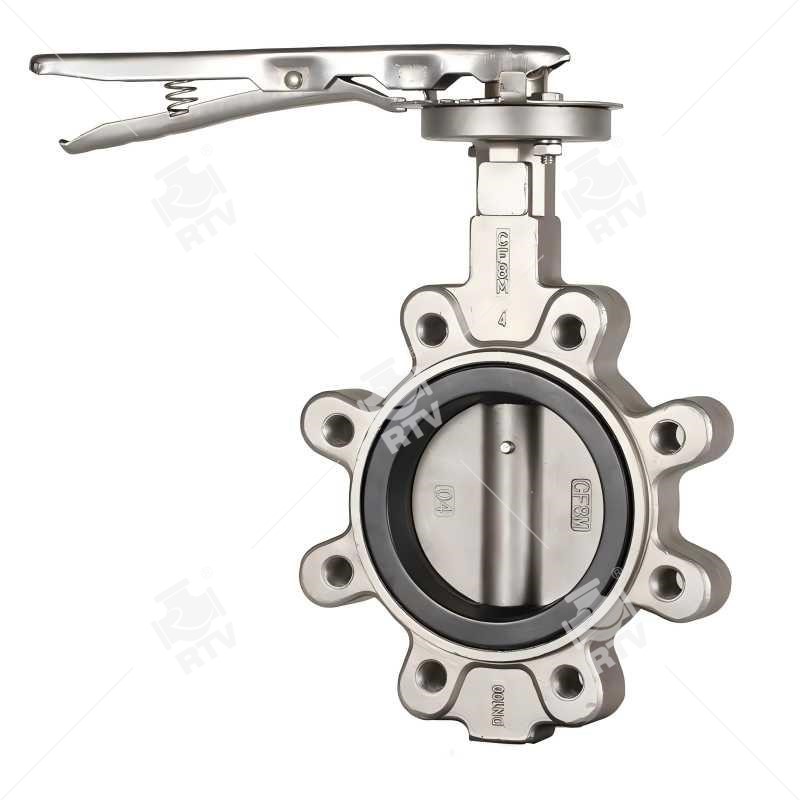

Stainless steel lug butterfly valve Introduction
This stainless steel lug butterfly valve is a durable and reliable option for controlling flow in your system. Its high-quality stainless steel construction ensures longevity and corrosion resistance. With its innovative design, this valve provides efficient and precise control while minimizing pressure drop. Upgrade your system with this industry-leading valve.
- novel design, reasonable, unique structure, light weight, rapid opening and closing.
- Small operating torque, easy to operate, labor-saving dexterity.
- It can be installed in any position, easy maintenance.
- the seal can be replaced, sealing performance is reliable to achieve two-way sealing zero leakage.
- sealing material aging resistance, weak corrosion resistance, long service life and other characteristics.
Standard of Implementation
| Category | Details |
|---|---|
| Type | Lugged |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200 PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical/processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/TON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M/DI/Ni/SS304 |
| 5 | Pin | SS |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Dimensions:(mm)
