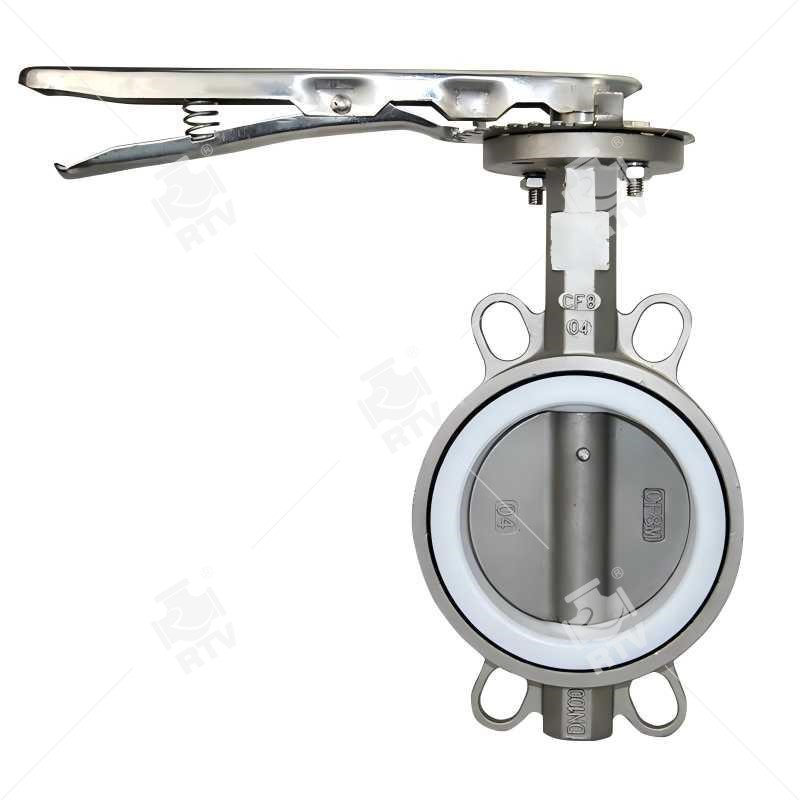

PTFE Stainless Steel Wafer Butterfly Valve Introduction
This PTFE stainless steel wafer butterfly valve provides superior corrosion resistance and durability, making it ideal for a wide range of industrial applications. The strong PTFE construction and stainless steel components ensure reliable and long-lasting performance, while the wafer design allows for easy installation and maintenance. Upgrade your systems with this top-quality valve.
PTFE Stainless Steel Wafer Butterfly Valve Drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Wafer |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| Item | Part Name | Material |
|---|---|---|
| 1 | Body | CI/DI/CS/SS Etc. |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon Etc. |
| 3 | Shaft | SS416/316/304 Etc. |
| 4 | Disc | CF8/CF8M/D1 Ni Etc. |
| 5 | Pin | SS304/SS316 |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Dimensions:(mm)
