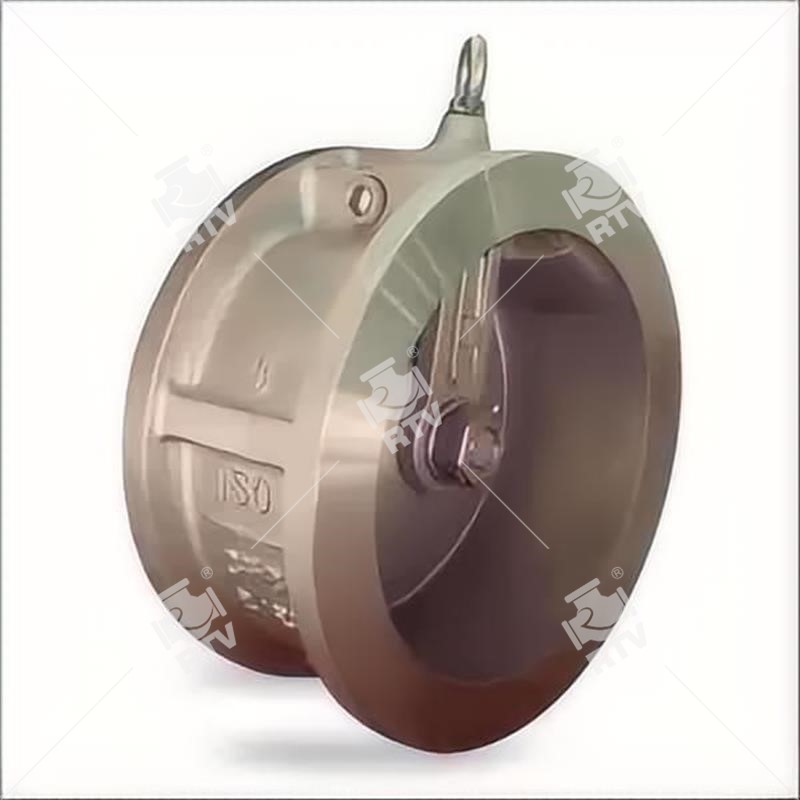

Design standard: API 594, API 6D.
Body material: CF8.
Nominal diameter: 6".
Pressure: CL150 (PN20).
End connection: WAFER.
Face to face: ASME B16.10.
Working temperature: -254℃~ 800℃.
Test and inspection: API 598.
Body material: CF8.
Nominal diameter: 6".
Pressure: CL150 (PN20).
End connection: WAFER.
Face to face: ASME B16.10.
Working temperature: -254℃~ 800℃.
Test and inspection: API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~48" (DN15~DN1200).
End connection: Wafer, Lug, Clamp, Flanged.
Pressure range: 150 lbs~2500 lbs (PN10~PN420).
Working temperature: -196℃~ 560℃.
Normal diameter: 1/2"~48" (DN15~DN1200).
End connection: Wafer, Lug, Clamp, Flanged.
Pressure range: 150 lbs~2500 lbs (PN10~PN420).
Working temperature: -196℃~ 560℃.
RTV Valve,
Pressure Rating: Class 150.
Body/Bonnet: ASTM A216 WCB.
Connect Ends: Wafer / Lug.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Test and Inspection: API 598.
Body/Bonnet: ASTM A216 WCB.
Connect Ends: Wafer / Lug.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Test and Inspection: API 598.
Valve description:
Lug Type Check Valve, LUG.Design: API 594.
Body: ASTM A351 CF8M
Nominal size: DN80.
Nominal class: 150 LB.
End Connection: LUG.
Face to face: API 594.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 2 - 8 Inch (DN15 - DN200).
End connection: LUG, WAFER, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - 300℃.
Technical parameters and characteristics
| Product | Lug Type Check Valve. |
| Nominal diameter | 2 Inch - 8 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Stainless Steel. |
| Design standard | API 594. |
| Face to face | ASME B16.10/API 594. |
| Connection end | LUG, WAFER, Flanged. |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
