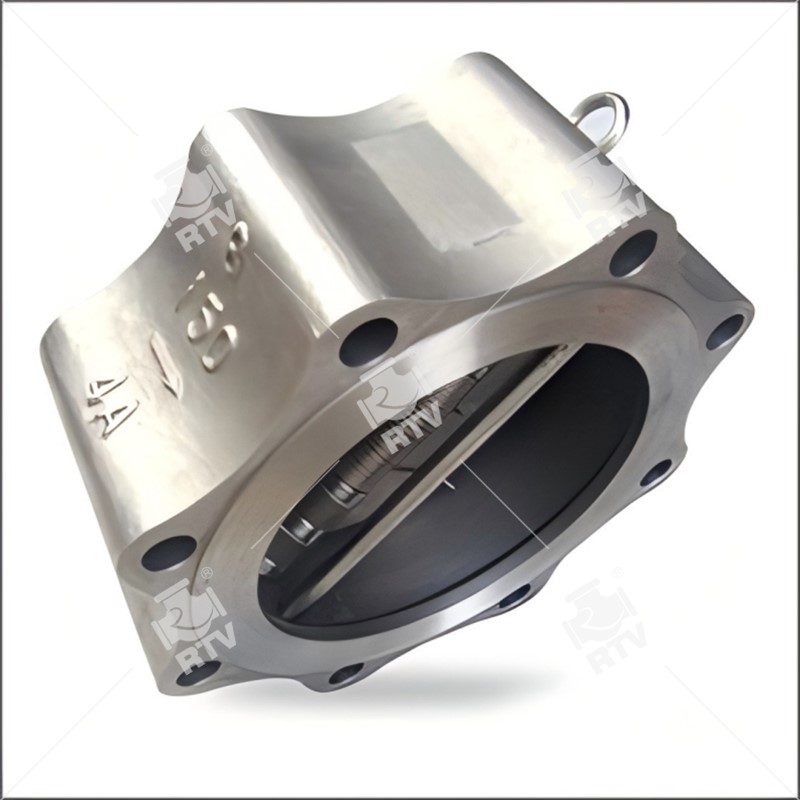

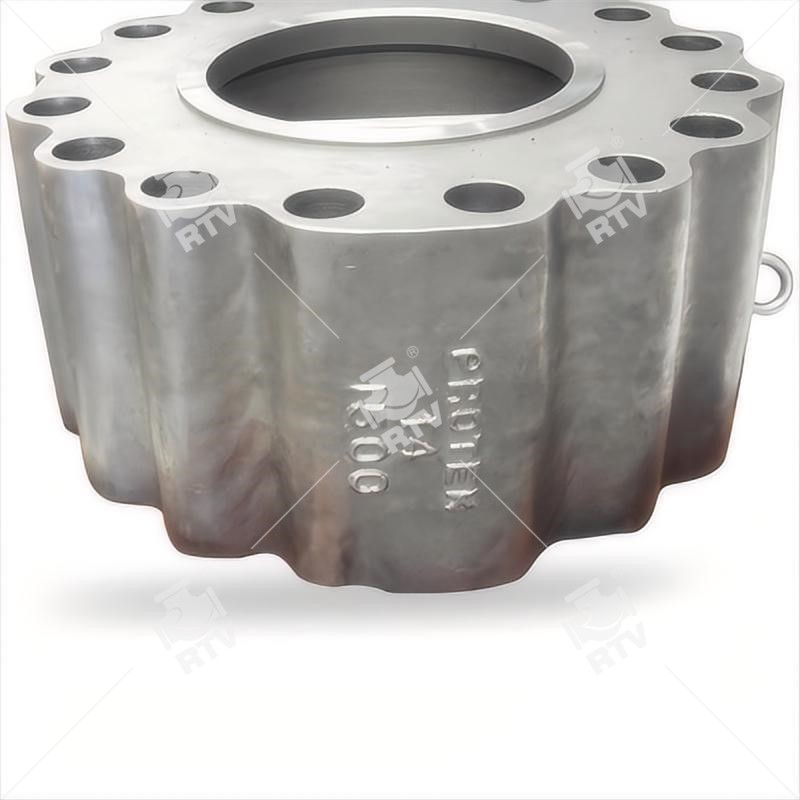

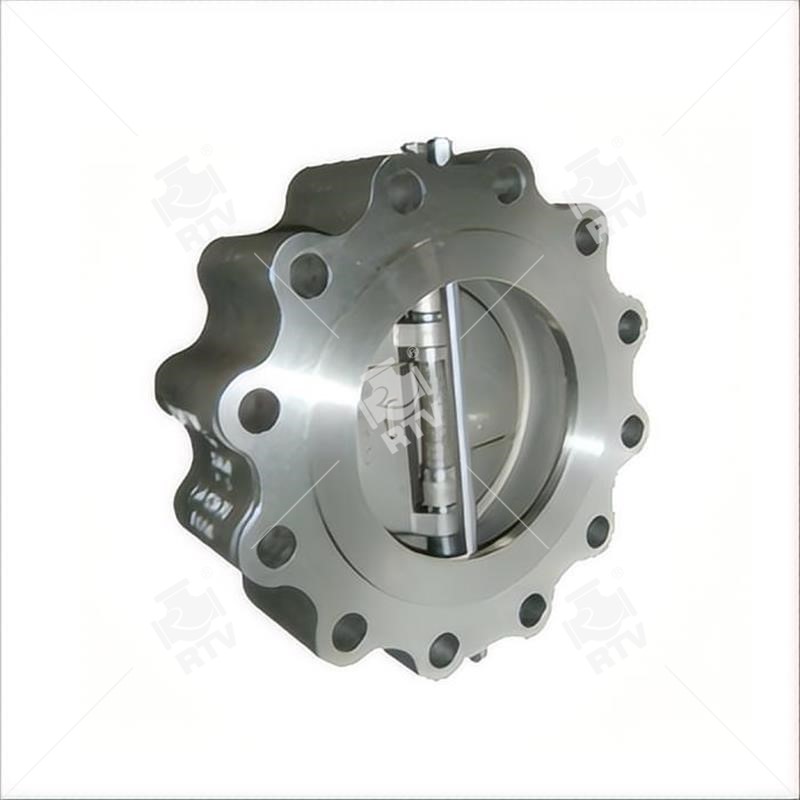

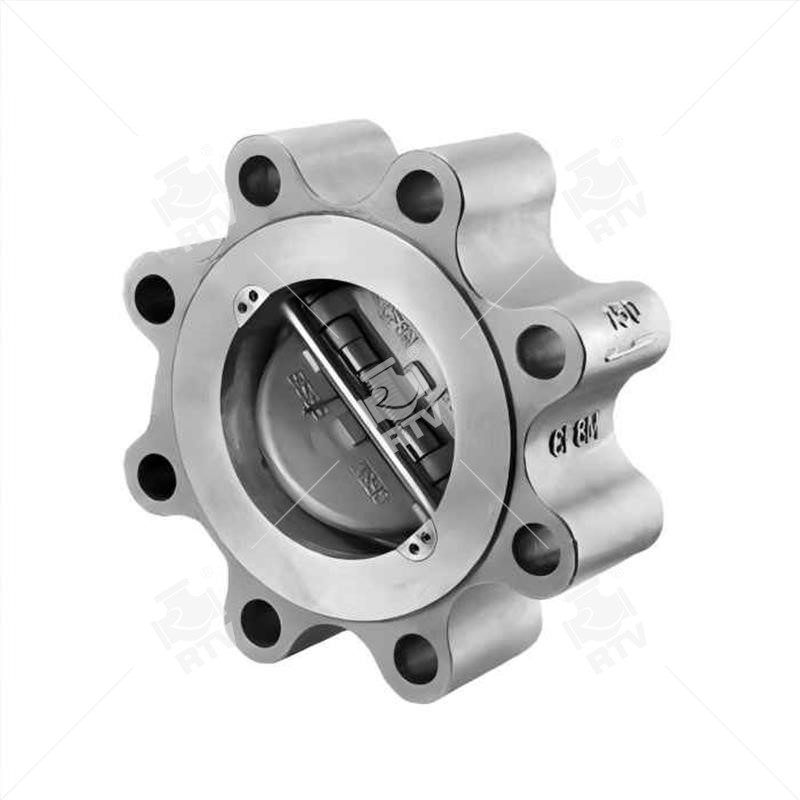

Dual Plate Lug Check Valve

Dual Plate Lug Check Valve

Discover excellence in fluid control with our Dual Plate Lug Check Valve, proudly crafted in China. This valve adheres to API 594 standards, showcasing the highest quality and reliability. Constructed from premium Stainless Steel ASTM A351 CF8M, this valve, with a 3-inch size (DN80), operates seamlessly in Class 150 LB and PN20 environments. Featuring a Full Port design, this Lug Type Check Valve ensures optimal flow efficiency.

Design Standard: API 594
Body Material: Casting Steel, Carbon Steel, ASTM A216 WCB
Nominal Diameter: 10 Inch, DN250, 250MM
Pressure: Class 150 - 2500 LB
End Connection: ASME B16.5
Face To Face: API 594, ASME B16.10
Test And Inspection: API 598

Product Range

Sizes: NPS 2-48 Inch
Pressure: Class 150-2500 LB
Materials: Casting A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
Design Features: Dual Plate or Single Plate, Wafer, Lug and Flanged
Design Standard:
Design & manufacture according to API 594
Face-to-face according to API 594, ASME B16.10
End Connection according to ASME B16.5
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103



RTV Valve
Pressure Rating: Class 150.
Body/Bonnet: ASTM A216 WCB.
Connect Ends: Wafer / Lug.

Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Test and Inspection: API 598.

Valve description:
Lug Type Check Valve, LUG.
Design: API 594.
Body: ASTM A351 CF8M
Nominal size: DN80.
Nominal class: 150 LB.
End Connection: LUG.
Face to face: API 594.
Test and inspection: API 598.

Product Range:
Body material: Stainless Steel.
Normal diameter: 2 - 8 Inch (DN15 - DN200).
End connection: LUG, WAFER, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - 300℃.

Technical parameters and characteristics
Product Lug Type Check Valve.
Nominal diameter 2 Inch - 8 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Stainless Steel.
Design standard API 594.
Face to face ASME B16.10/API 594.
Connection end LUG, WAFER, Flanged.
Test standard API 598.
Package Plywood
Application water, oil and gas.
