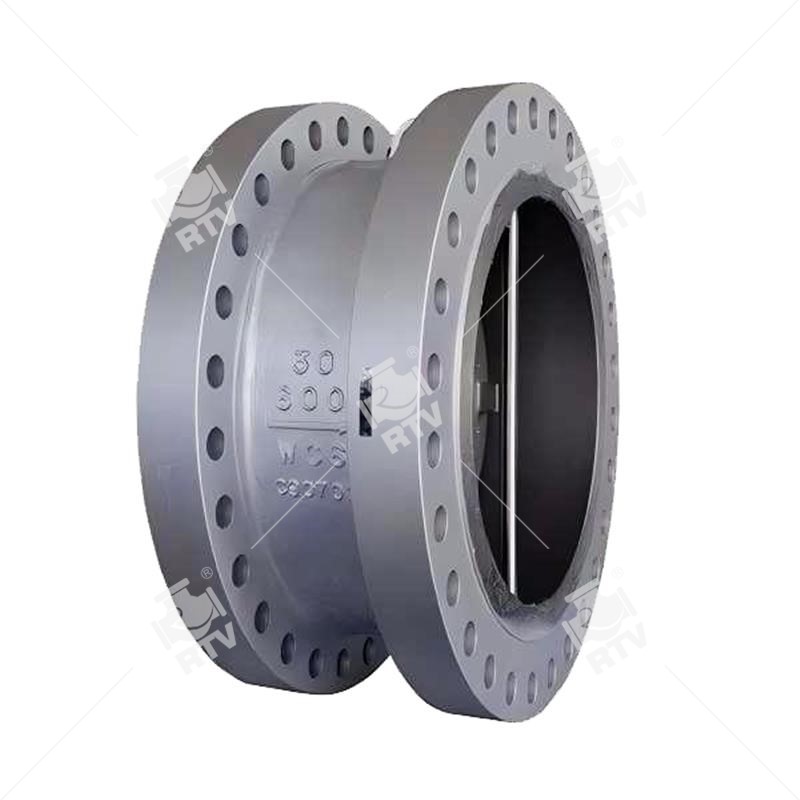

API 594 Dual Plate Check Valve

Design Standard: API 594
Body Material: Casting Steel, Carbon Steel, ASTM A216 WCB
Nominal Diameter: 10 Inch, DN250, 250MM
Pressure: Class 150 - 2500 LB
End Connection: ASME B16.5
Face To Face: API 594, ASME B16.10
Test And Inspection: API 598

Product Range

Sizes: NPS 2-48 Inch
Pressure: Class 150-2500 LB
Materials: Casting A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy

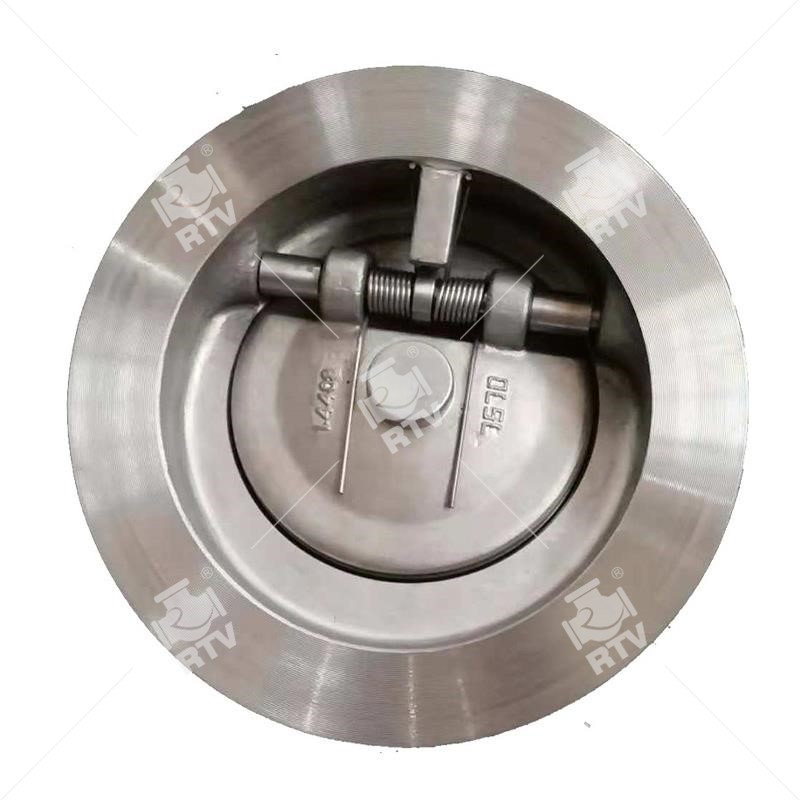

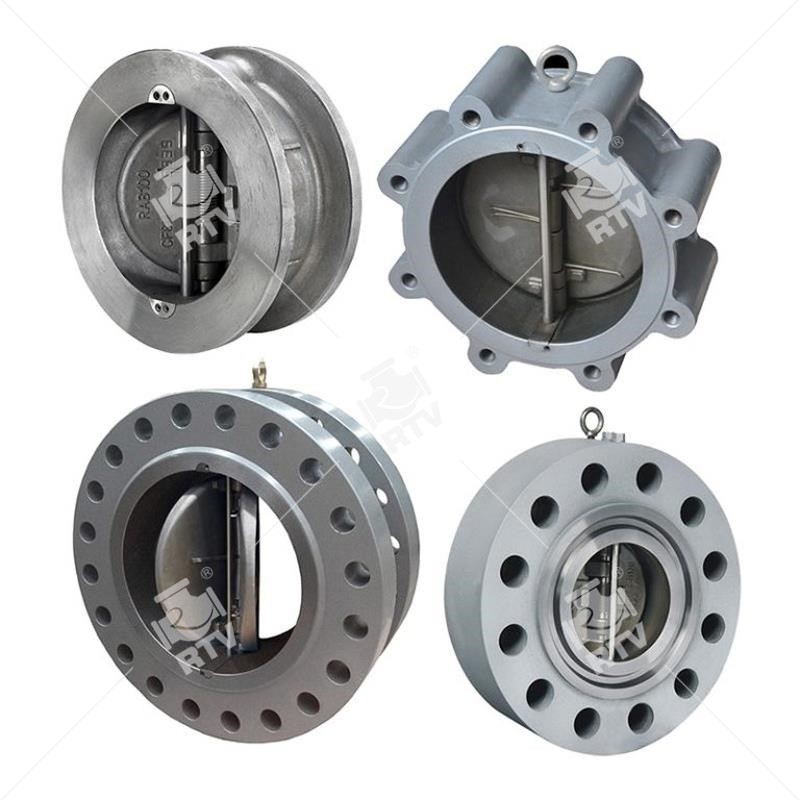

Design Features: Dual Plate or Single Plate, Wafer, Lug and Flanged
Design Standard:
Design & manufacture according to API 594
Face-to-face according to API 594, ASME B16.10
End Connection according to ASME B16.5
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
