Unidirectional Seal Knife Gate Valve(No-Rising Stem Available)

Produced by Ruitong Unidirectional Seal Knife Gate Valve(No-Rising Stem Available) The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.
Flange Standard:
DIN PN10,PN16,150LB,JIS 10K, TABLE E/D
Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
handwheel,electric,pneumatic,hydraulic,sprocket,electro-hydraulic,gear
Main Material:

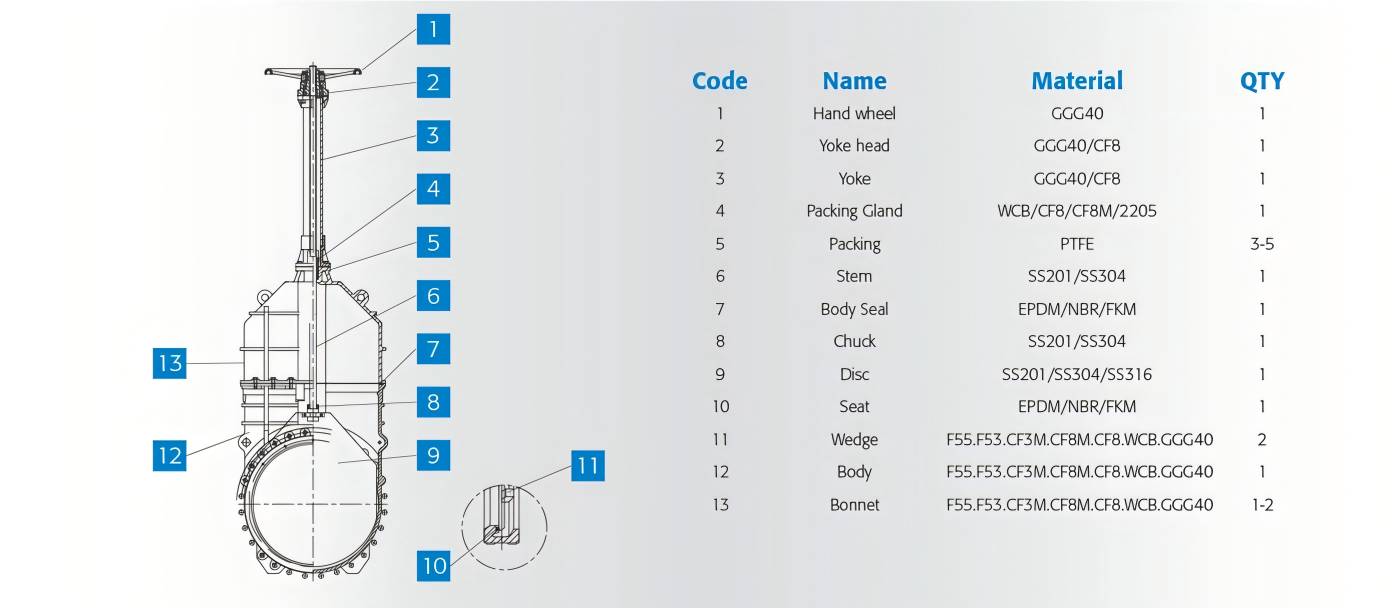

F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:
EPDM, FKM, NBR, PTFE
Packing:
high-water-based rubber packing graphite wheel
Applicable Medium:
Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
