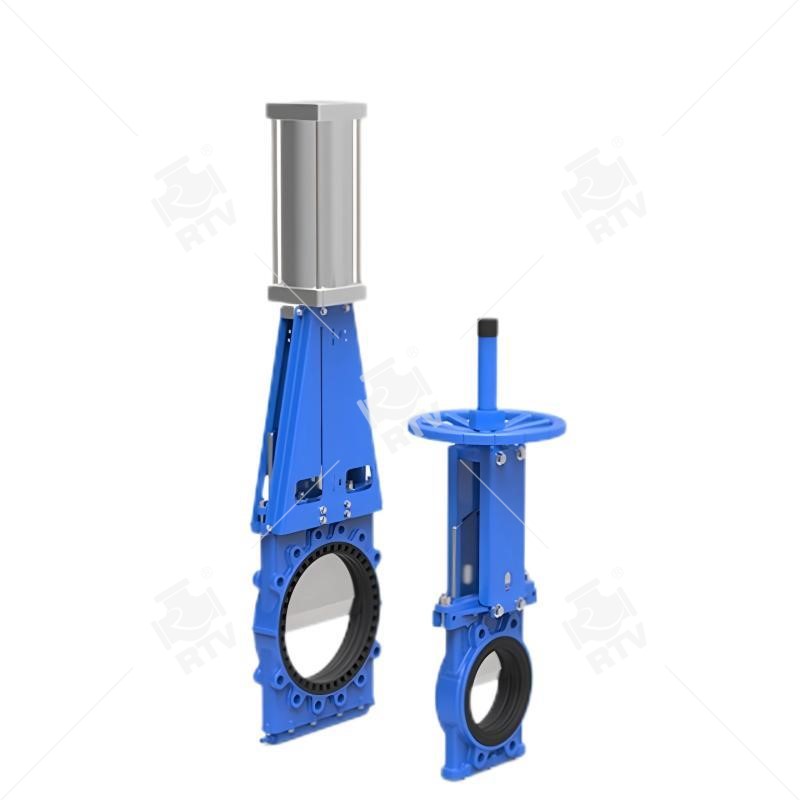

Bi-directional Self-sealing Knife Gate Valve

Bi-directional Self-sealing Knife Gate Valve

Produced by Ruitong Valve Bi-directional Self-sealing Knife Gate Valve The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.
Flange Standard:
DIN PN10,PN16, 150LB, JIS 10K, TABLE E/D
Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear, lever
Main Material:
F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:
NBR, EPDM, NR, PU
Packing:
Aramid fiber, high-water based fiber, rubber, PTFE
Applicable Medium:
Applicable to slurry, urban sewage treatment, sugar, powder, paper, medicine, chemicals, food and other fields.

Bi-directional Self-sealing Knife Gate Valve
Normal Size Range: 2"-60"
Normal Pressure Rating: PN10~PN16, CLASS150
Material: GG25,GG40,WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric, Chainwheel. Lever
Seat: EPDM, Viton, Metal, PTFE, NBR
Temperature Range: -29~150Degree C

Standards compliance
Design and Manufacture: GB/T12237
Face to face(end to end): GB/T15188.2
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927

RTV VALVE QW Series Self-sealing knife gate valve is to use two rubber seats on the clip pressed the knife a sealing effect. When the knife is fully open, the two seat seals combined together tightly, the pipeline pressure will make sealing better, while the valve is closed, the gate can be arbitrarily removed convenient maintenance, no need to remove the entire valve repair and does not affect the normal operation of the pipeline. The main characteristics of the valve bore full rubber seal seat, has a strong anti-wear properties and all-pass run off continuity. Suitable for use on those requirements valve wear mining.
