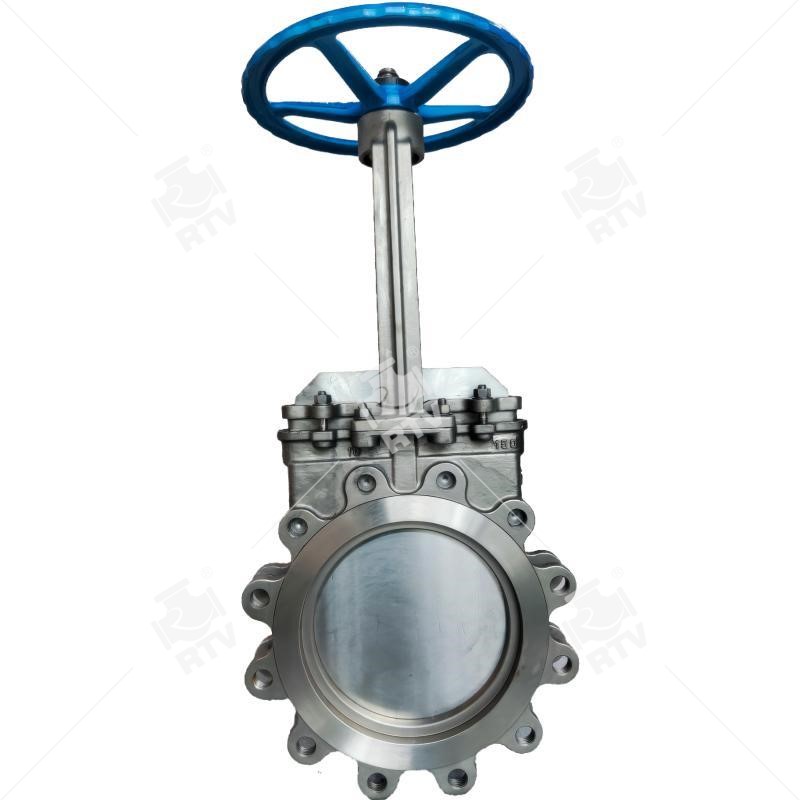

Stainless steel American standard knife gate valve

Produced by Ruitong Valve Stainless steel American standard knife gate valve The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.

Inquiry

Product Details

Technical Specification
Normal Size Range: 2"-60"
Normal Pressure Rating: PN10~PN16, CLASS150
Material: GG25,GG40,WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric, Chainwheel. Lever
Seat: EPDM, Viton, Metal, PTFE, NBR
Temperature Range: -29~150Degree C

Standards compliance
Design and Manufacture: GB/T12237
Face to face(end to end): GB/T15188.2
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927
