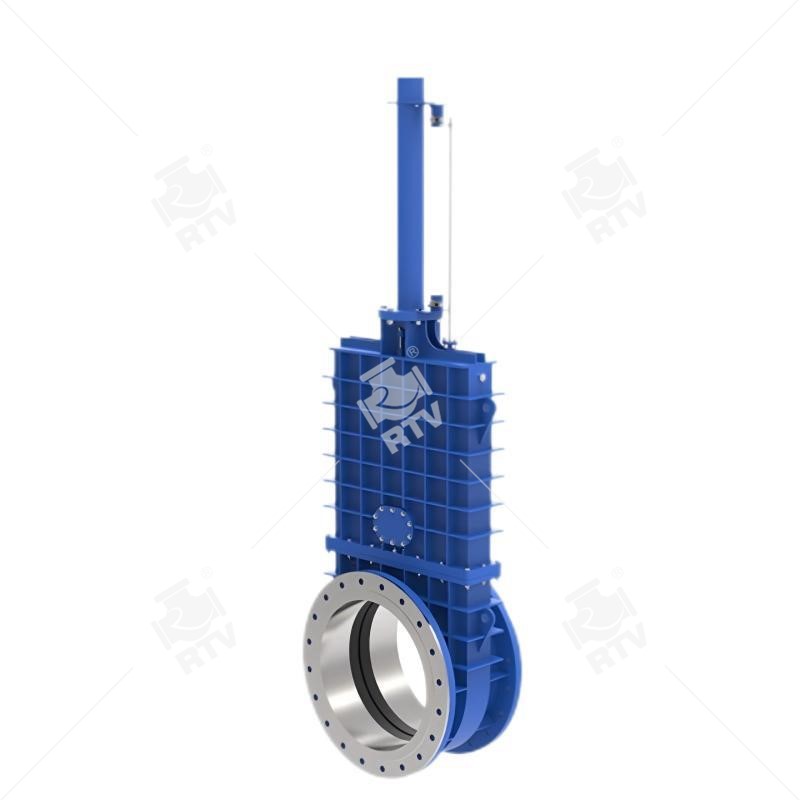

Bi-directional Seal Knife Gate Valve/Fully Enclosed Medium Pressure

Produced by Ruitong Valve Bi-directional Seal Knife Gate Valve/Fully Enclosed Medium Pressure The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.
Flange Standard:
DIN PN10, PN16, 150LB, JIS 10K, TABLE E/D
Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear
Main Material:
F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53,2205, SS310, SS316L,SS316, SS304
Sealing Material:
NBR, EPDM, NR, PU
Packing:
Aramid fiber, high-water based fiber, rubber, PTFE
Applicable Medium:
Applicable to Silt dredger, cutter suction dredger, mud.
