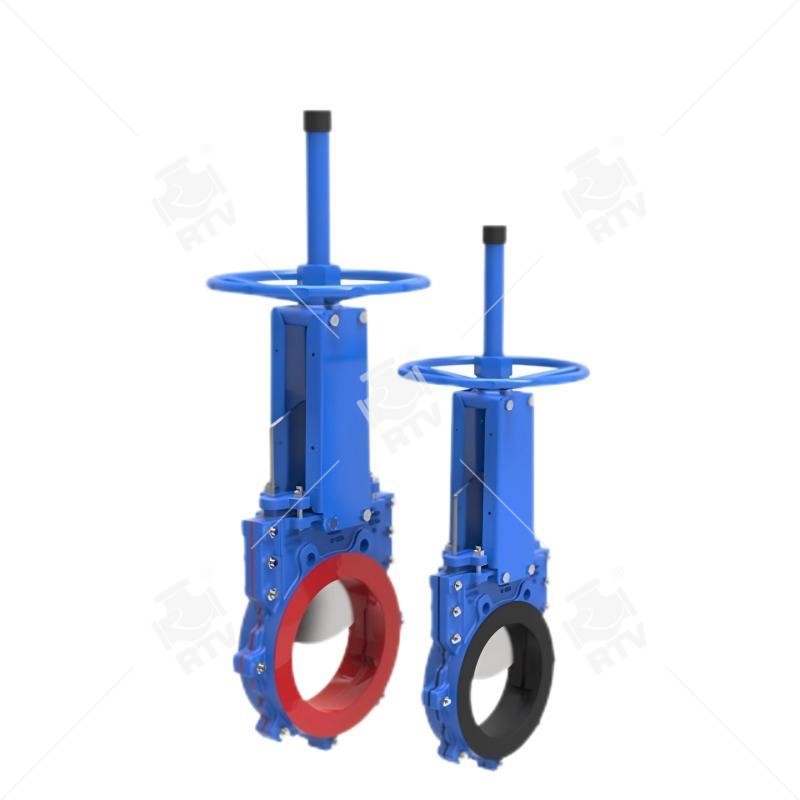

Bi-directional Fully Rubber Lining Knife Gate Valve

Bi-directional Fully Rubber Lining Knife Gate Valve

Produced by Ruitong Valve Bi-directional Fully Rubber Lining Knife Gate Valve The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.
Flange Standard:
DIN PN10, PN16, 150LB, JIS 10K, TABLE E/D
Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear, lever
Main Material:
F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:
NBR, EPDM, FKM, PU
Packing:
Aramid fiber, high-water based fiber, rubber, PTFE
Applicable Medium:
Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.

Bi-directional Fully Rubber Lining Knife Gate Valve
Normal Size Range: 2"-60"
Normal Pressure Rating: PN10~PN16, CLASS150
Material: GG25,GG40,WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric, Chainwheel. Lever
Seat: EPDM, Viton, Metal, PTFE, NBR
Temperature Range: -29~150Degree C

Standards compliance
Design and Manufacture: GB/T12237
Face to face(end to end): GB/T15188.2
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927

QJ Series No groove bi-directional seal rubber lining knife gate valve, Ductile iron body, rubber lining design,avoiding the media corrode the body, the bottom of the body with groovless. When the valve is closed, the bottom of the gate edge contact with the seal and then compress the seal into the groove in the body and sealed gate realization; when the gate opens, separate gate from the bottom edge of the seal, seal will bounce to same level as groove, which will prevent the media sediment accumulated in the body cavity of the groove, no clogging, no residue,pipe easy to clean, so as to effectively improve the sealing effect knife gate valve to prevent leakage when the valve is closed.
