Unidirectional Seal Knife Gate Valve

Unidirectional Seal Knife Gate Valve

Produced by Ruitong Valve Knife gate valve The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces.

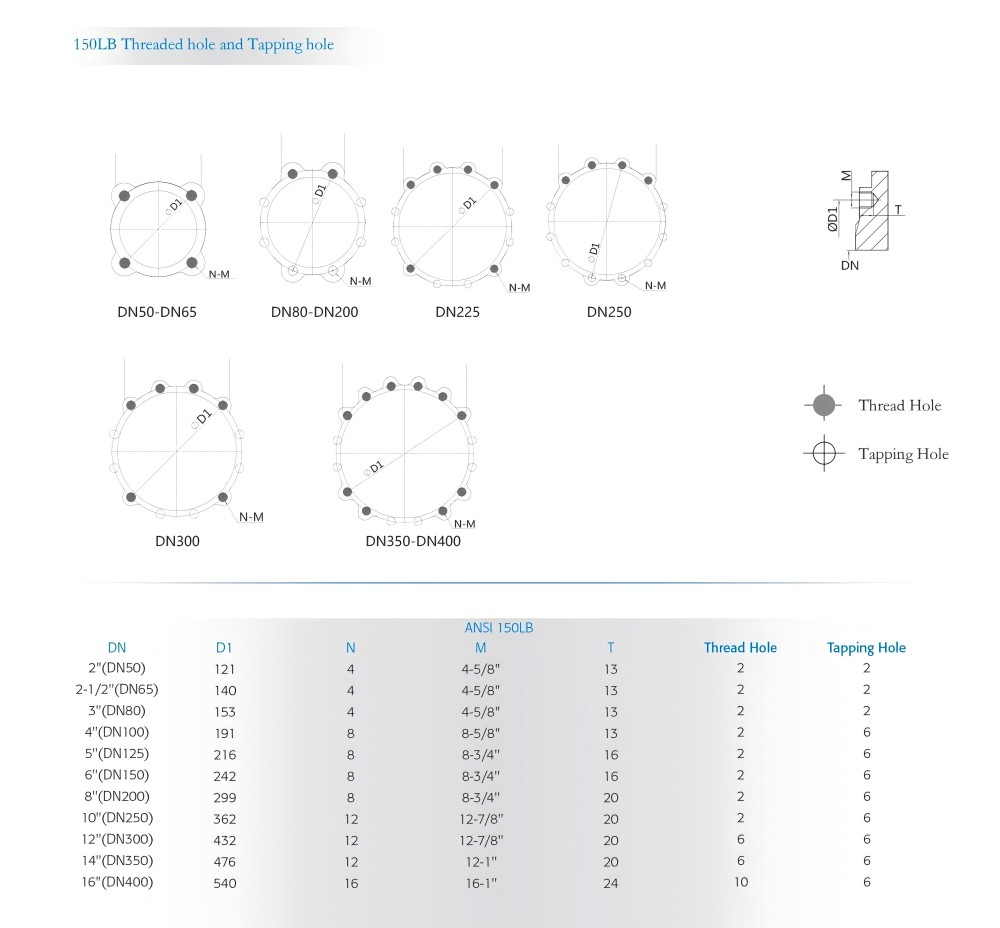

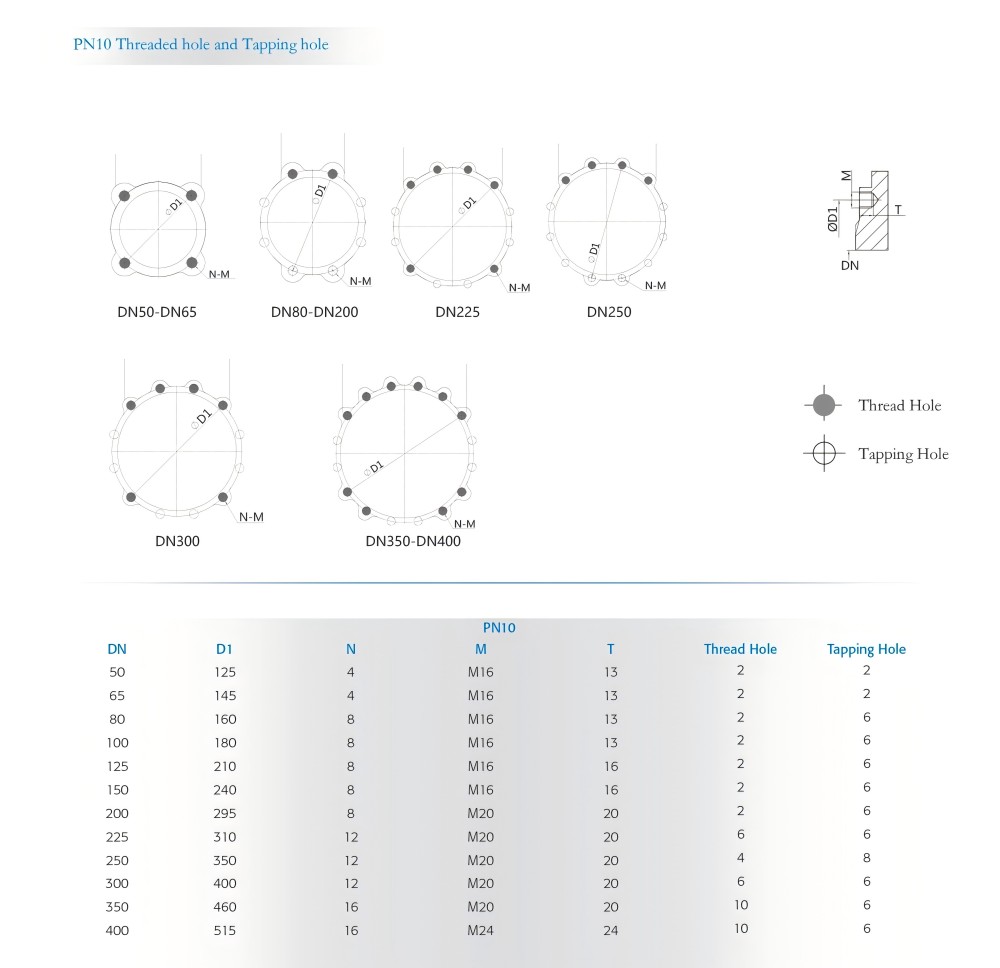

Flange Standard:
DIN PN10,PN16,150LB ,JIS 10K,TABLE E/D

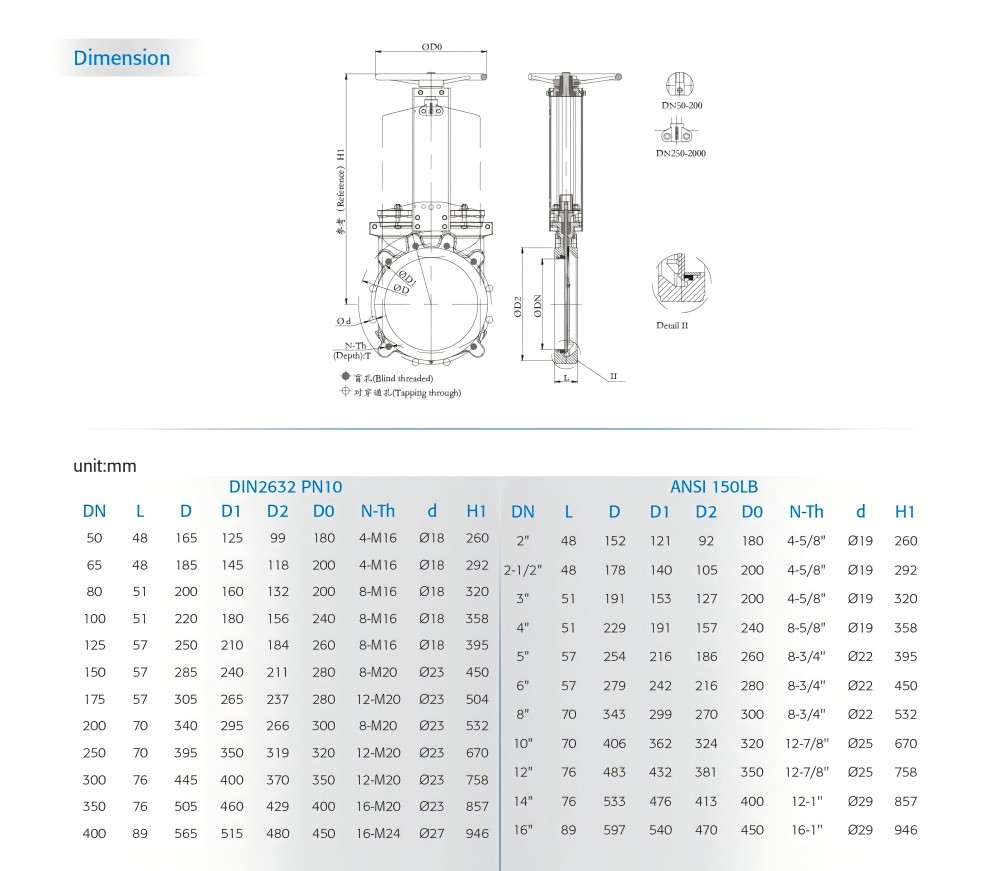

Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
manual, electric, pneumatic, hydraulic,sprocket, electro-hydraulic, gear ,lever

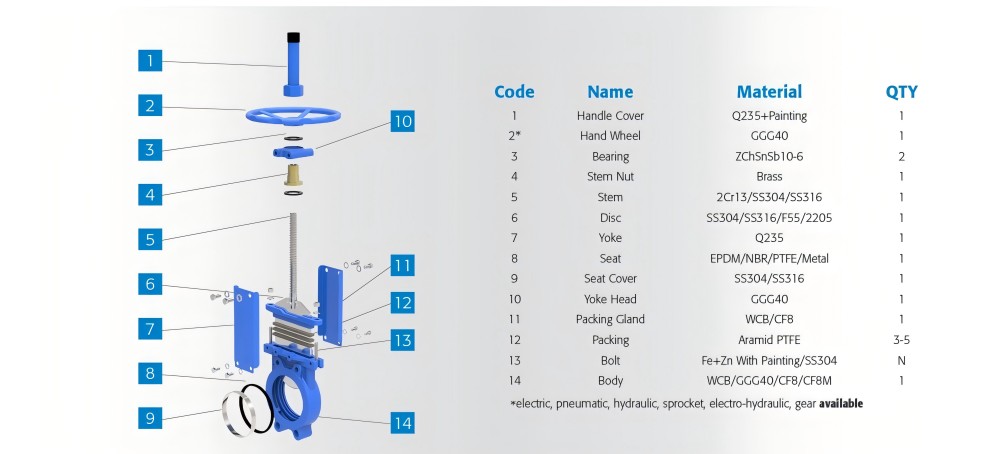

Main Material:
F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:
NBR, EPDM, PTFE, FKM, Graphite, Metal
Packing:
Aramid fiber, high-water based fiber, rubber,PTFE, graphite
Applicable Medium:
for pulp, cement slurry, gold ore powder,coal slurry, pulp, chemical treatment of sewage, sedimentation tanks, asphalt,acid and other liquids and other media.

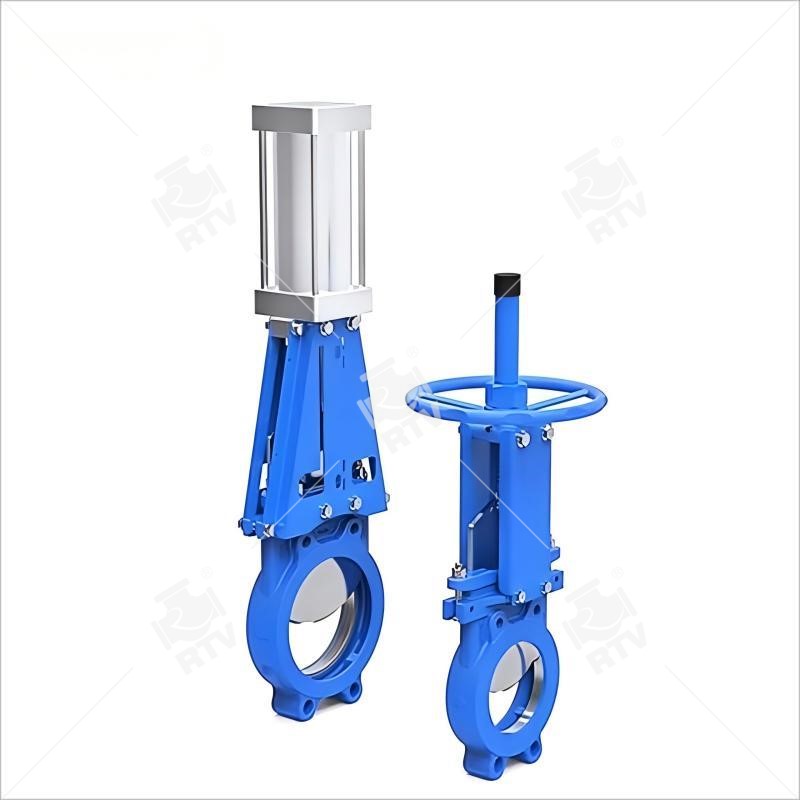

QB Series Knife gate valve is with replaceable rubber seal knife gate structure, its sealing principle is mainly by closely connection between gate and rubber seals. Its main characters is that
the rubber sealing ring is set in seat’groove and is locked by metal seat, which will prevent rubber seal off when opening and closing the valve. If the seal is broken, you can remove the metal
seat and replace the rubber seal, which will greatly improve valve’ working efficiency. This valve is a cost-effective, high-performance products. The series of knife gate valve can be equipped
with pneumatic actuators, in order to meet the requirements of different industrial and mining use.
