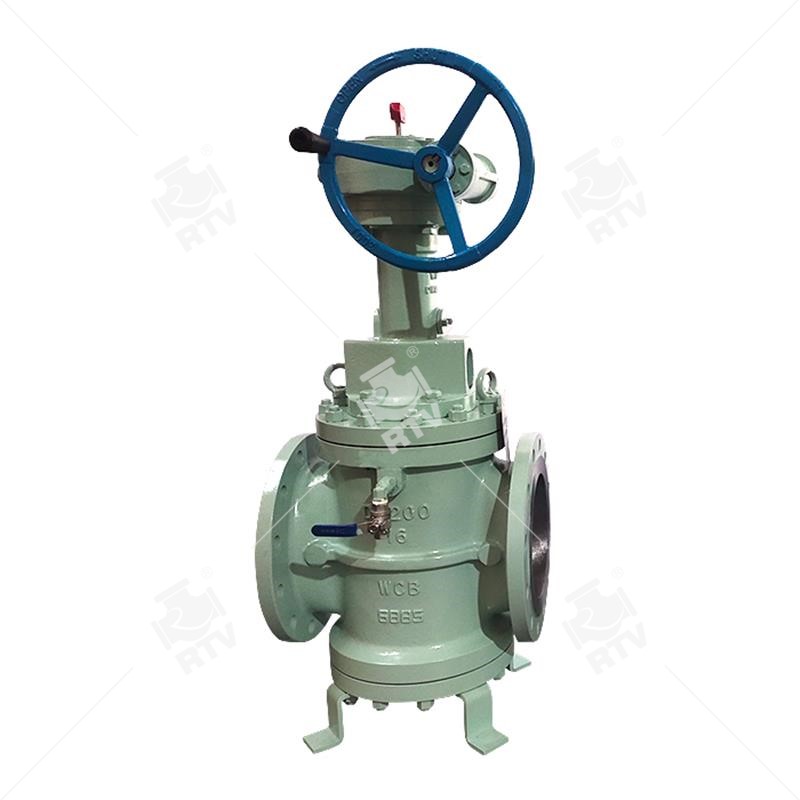

Electric three way plug valve
PRODUCT STRUCTURAL FEATURES
3 way, 4 way plug valve is applicable to change the media flowing direction or to distribute the media, that are used in various industries such as, petroleum, chemical industry, pharmacy, chemical fertilizer, power. Industry etc. under nominal pressure class 150-900LBS, PN1.0-16.0, Working temperature- 29°C~550°C.
MAIN STRUCTURAL FEATURES
1. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions, the 3-way, 4-way plug valve can be designed into diverse media flowing formsfeg." L' type or" T" type) or all kinds of material (eg. Iron, cast steel, stainless steel) or unlike sealing formsfeg. Metal to metal, sleeve Type, lubricated, etc).
3. The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
3-WAY ARRANGEMENTS
Only the Type A plug will shut off the flow. With the Type AX, C, and 0 plugs, there is always flow between the bottom port and one of the side ports.
Description
Design standard :API 599
Product scope :
1.Pressure scope :CLASS 150Lb~600Lb
2.Nominal diameter : NPS 1~24″
3.Body material:A105、LF2、F304、F316、F304L、F316L、F51,WCB、LCB、WCC、CF8、CF8M、CF3、CF3M、A890 4A etc
4.End connection :RF RTJ BW
5.Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;
