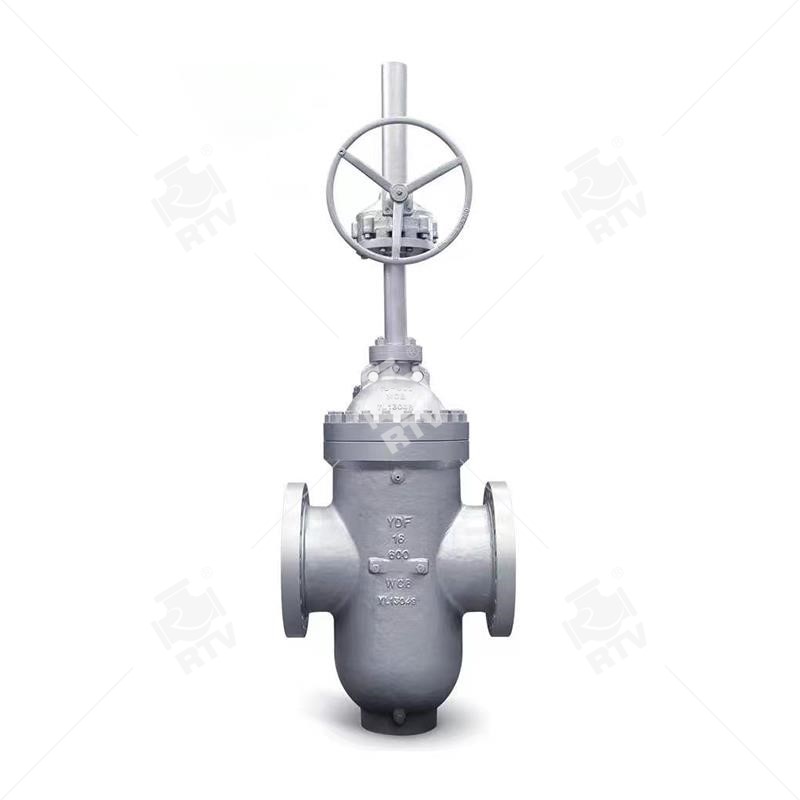

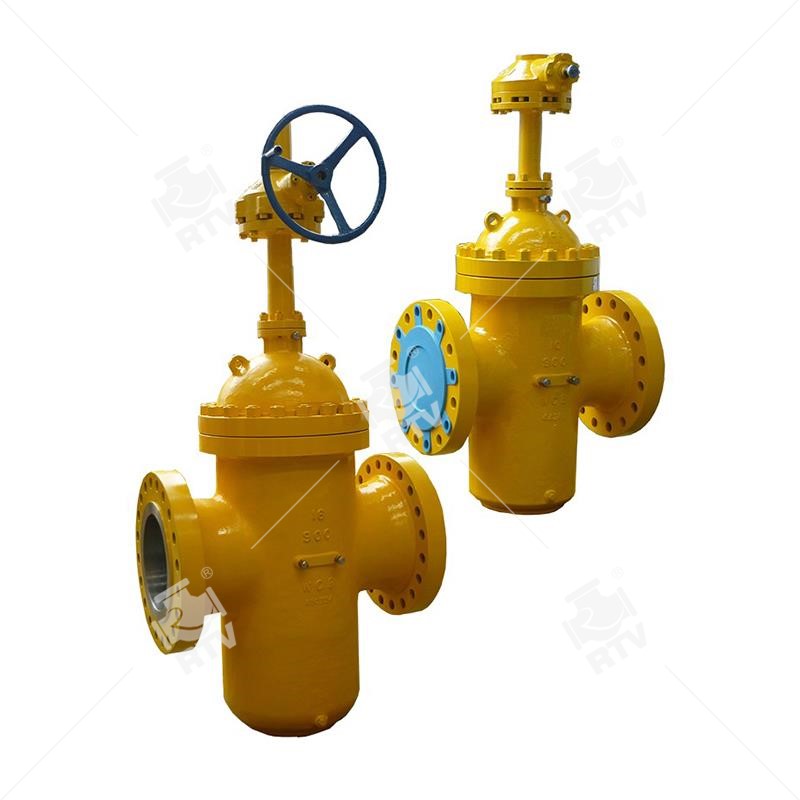

API6D Gate Valve

API6D Gate Valve

The API6D flat gate valves produced by RTV Ruitong Valve are suitable for natural gas, petroleum, chemical, environmental protection, urban pipelines, gas pipelines and other transportation pipelines, as well as venting systems and steam storage devices. The flat gate valves are used as opening and closing equipment. The Z43 type single gate flat gate valve with diversion holes is suitable for long-distance natural gas extraction and purification pipelines.

Features of flat gate valve products

1. The valve seat adopts an O-ring seal and a floating valve seat structure with pre tightening force applied, which makes the inlet and outlet of the flat gate valve sealed in both directions; And the opening and closing torque of this structure is only half of that of a regular valve, which can easily open and close the valve

2. When fully open, the channel is smooth and straight, with minimal flow resistance coefficient and no pressure loss. It can clean the pipeline with a capillary ball

3. Adopting a packing structure with self sealing ability, without the need for frequent adjustment, the opening and closing are extremely lightweight, and the sealing performance is reliable. There is an auxiliary sealing grease injection structure at the packing box, which is absolutely reliable in sealing performance and truly achieves zero leakage; Solved the problem of leakage at the packing of general valves

4. When the flat gate valve is closed, it can automatically remove the high pressure inside the chamber, ensuring safe use

5. Fully enclosed structure, good protective performance, and can adapt to all-weather requirements

Executive standard for flat gate valves

1. Design standards: JB/T 5298, API 6D

2. tructural length: JB/T 5298, API 6D

3. Connection flange: JB/T 79, ANSI B16.5

4. Experiment and Inspection: JB/T 5298, API 6D

5. Pressure temperature: GB 9131, ANSI B16.34

6. Product identification: GB/T 12220, MSS SP-25
