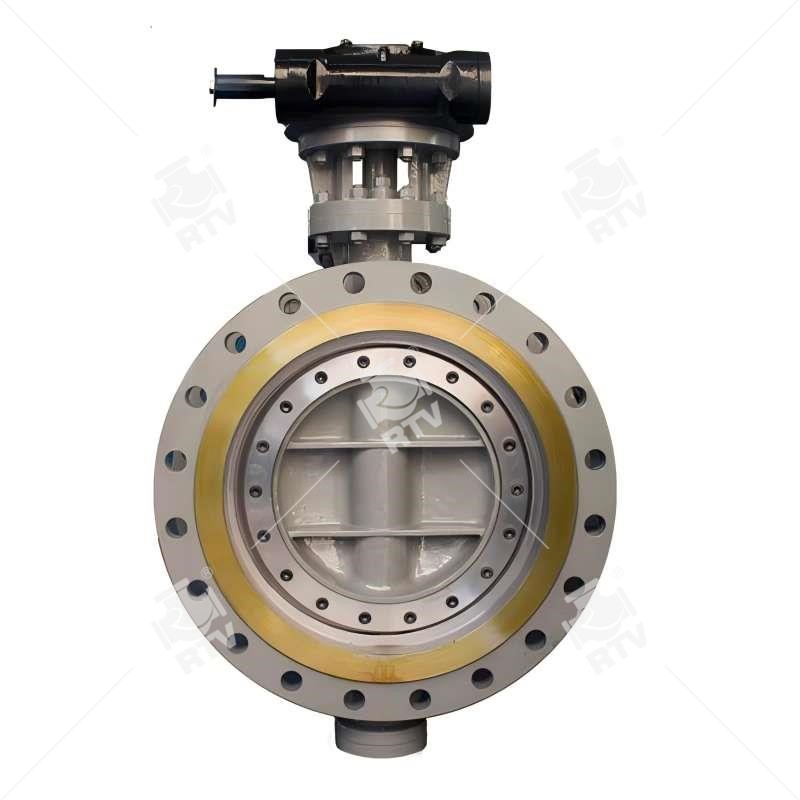

API609 High Pressure Triple Eccentric Butterfly Valve

API609 High Pressure Triple Eccentric Butterfly Valve

RTV Zhejiang Ruitong Valve Co.,Ltd provides API609 High Pressure Triple Eccentric Butterfly Valve. The main structural features of American standard flange butterfly valves are clamp type and flange type three eccentric structures. The main structural features of 815 and 830L series butterfly valves are convex around the valve body and designed as a single flange structure with screw holes. 815 and 830 series butterfly valves are widely used in petroleum, chemical and industrial environmental water treatment, high-rise buildings, water supply and drainage pipelines, etc.

American standard butterfly valves and American standard flange butterfly valves have the following characteristics:

Due to the use of a three eccentric structure, the sealing performance is reliable, ensuring that the butterfly plate does not contact the sealing seat when opened, eliminating uneven loads on the sealing seat, extending its service life, and ensuring reliable sealing performance. It has advantages such as high temperature resistance, wear resistance, and corrosion resistance.

Design standard: API609-83

Flange connection size: ANSI B 16.5

Structural length: ANSI B 16.10-1992

Pressure test: API 598-82

Adopting standards

Design standard: API609-83

Flange connection size: ANSI B 16.5

Structural length: ANSI B 16.10-1992

Pressure test: API 598-82

Specifications

Size Range

Body Material

2"-80"

DN50-DN2000

WCB, CF8, CF8M, CF3, CF3M, WC6, LCB, 2205, etc.

Pressure Rating

DISC Material

Class150-Class600

PN6-PN100

WCB, CF8, CF8M, CF3, CF3M, WC6, LCB, 2205, etc.

End Connection

Seat Material

Flange (RF, RJ), Wafer, Lug, Butt Welding

SS304 graphite, PTFE, EPDM, NBR, RPTFE

Structure Style

Stem Material

Full Port, Triple Eccentric

F51, SS410, SS304, SS316, F6a, 17-4PH

Actuator Options

Design Standard

Lever, Worm Gear, Pneumatic, Electric.

EN593-2009

Temperature Range

Face to Face Standard

-50℃~650℃

EN558-1 2008

Connection Standard

Test Standard

Flange Drilling: EN1092

EN12266.1

Brand

RTV or OEM

Test

100% quantity tested before delivery

Guarantee

12 months from date of shipment or Negotiable

MOQ

1 Set

Sample

Available

Color

Customer required or manufacturer default

Packing

Plastic bag wrapped inside, seaworthy wooden case outside

Certificate

TS, CE, 3A, ISO9001, ISO14001, ISO45001, Mill Test Certificate

Country of Origin

Zhejiang, China

HS Code

848180 (universal), 8481804090 (China)

Port

Shanghai or Ningbo

Payment Terms

T/T, L/C, Western Union



Our API609 High Pressure Triple Eccentric Butterfly Valve is selling well worldwide thanks to our scientific management practices and the continuous improvement of product quality. We hope to lead the staff to explore the true meaning of life and work, and establish a correct outlook on life and career. The company adheres to the corporate value concept of "integrity, pragmatism, innovation, precision and efficiency".
