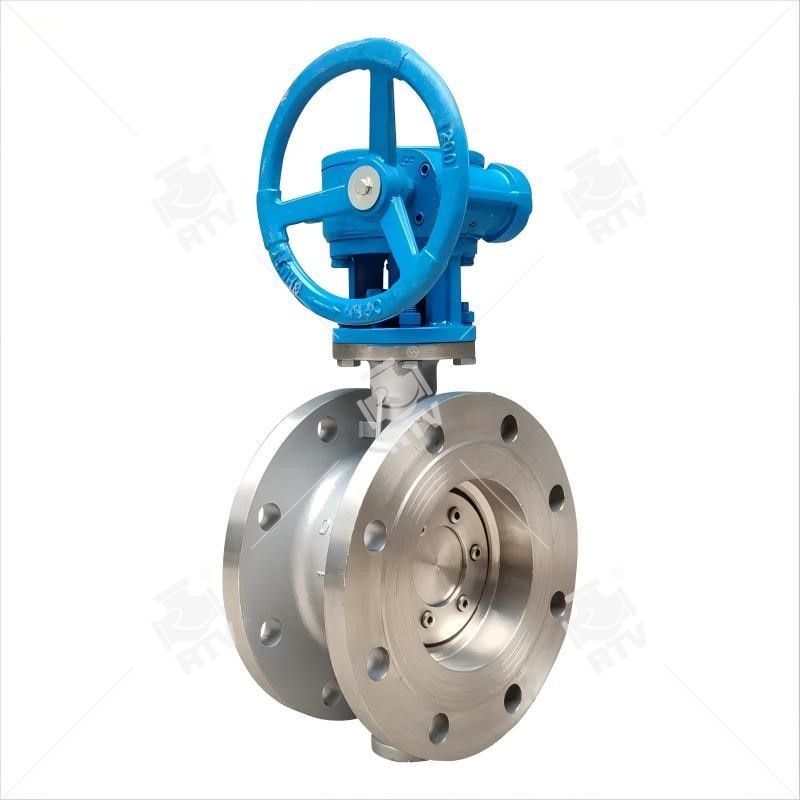

Stainless Steel Triple Eccentric Butterfly Valve
Due to the use of a three eccentric structure, the sealing performance is reliable, ensuring that the butterfly plate does not contact the sealing seat when opened, eliminating uneven loads on the sealing seat, extending its service life, and ensuring reliable sealing performance. It has advantages such as high temperature resistance, wear resistance, and corrosion resistance.
Design standard: API609-83
Flange connection size: ANSI B 16.5
Structural length: ANSI B 16.10-1992
Pressure test: API 598-82
Adopting standards
Design standard: API609-83
Flange connection size: ANSI B 16.5
Structural length: ANSI B 16.10-1992
Pressure test: API 598-82
Specifications
|
Size Range |
Body Material |
|
2"-80" DN50-DN2000 |
WCB, CF8, CF8M, CF3, CF3M, WC6, LCB, 2205, etc. |
|
Pressure Rating |
DISC Material |
|
Class150-Class600 PN6-PN100 |
WCB, CF8, CF8M, CF3, CF3M, WC6, LCB, 2205, etc. |
|
End Connection |
Seat Material |
|
Flange (RF, RJ), Wafer, Lug, Butt Welding |
SS304 graphite, PTFE, EPDM, NBR, RPTFE |
|
Structure Style |
Stem Material |
|
Full Port, Triple Eccentric |
F51, SS410, SS304, SS316, F6a, 17-4PH |
|
Actuator Options |
Design Standard |
|
Lever, Worm Gear, Pneumatic, Electric. |
EN593-2009 |
|
Temperature Range |
Face to Face Standard |
|
-50℃~650℃ |
EN558-1 2008 |
|
Connection Standard |
Test Standard |
|
Flange Drilling: EN1092 |
EN12266.1 |
|
Brand |
RTV or OEM |
|
Test |
100% quantity tested before delivery |
|
Guarantee |
12 months from date of shipment or Negotiable |
|
MOQ |
1 Set |
|
Sample |
Available |
|
Color |
Customer required or manufacturer default |
|
Packing |
Plastic bag wrapped inside, seaworthy wooden case outside |
|
Certificate |
TS, CE, 3A, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
|
Country of Origin |
Zhejiang, China |
|
HS Code |
848180 (universal), 8481804090 (China) |
|
Port |
Shanghai or Ningbo |
|
Payment Terms |
T/T, L/C, Western Union |
