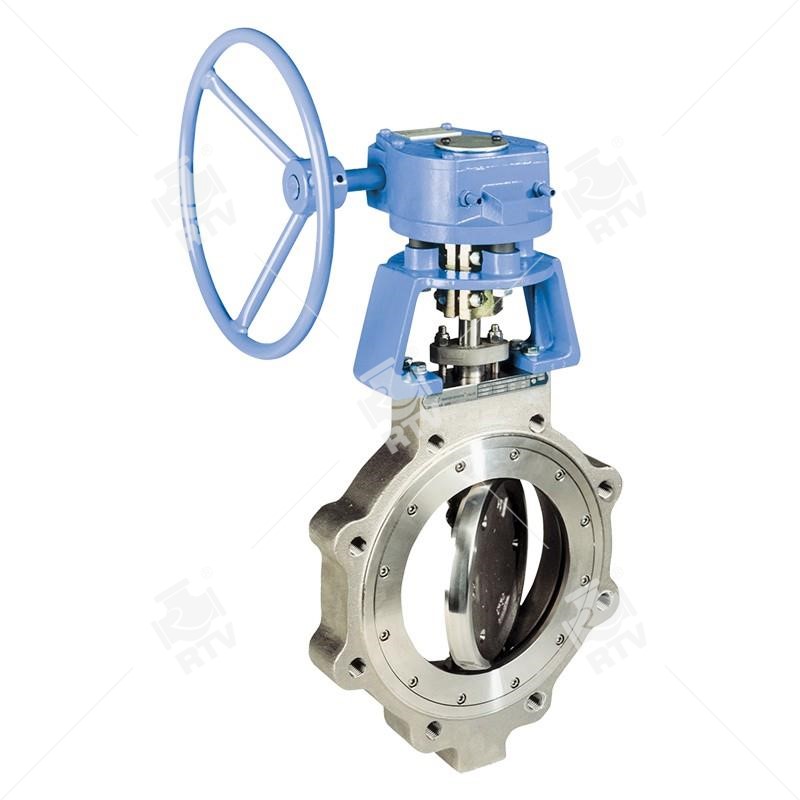

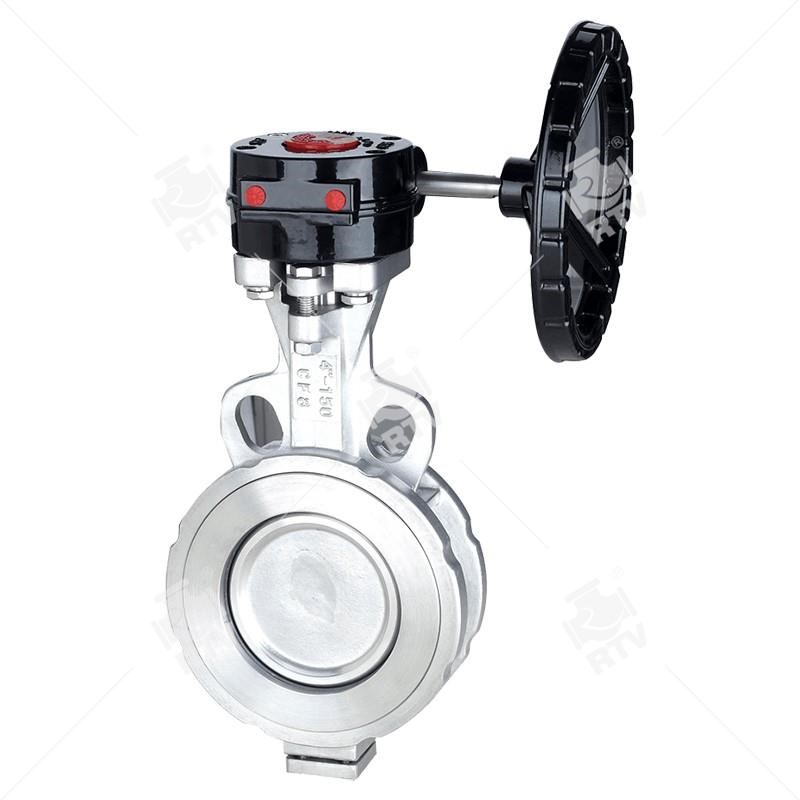

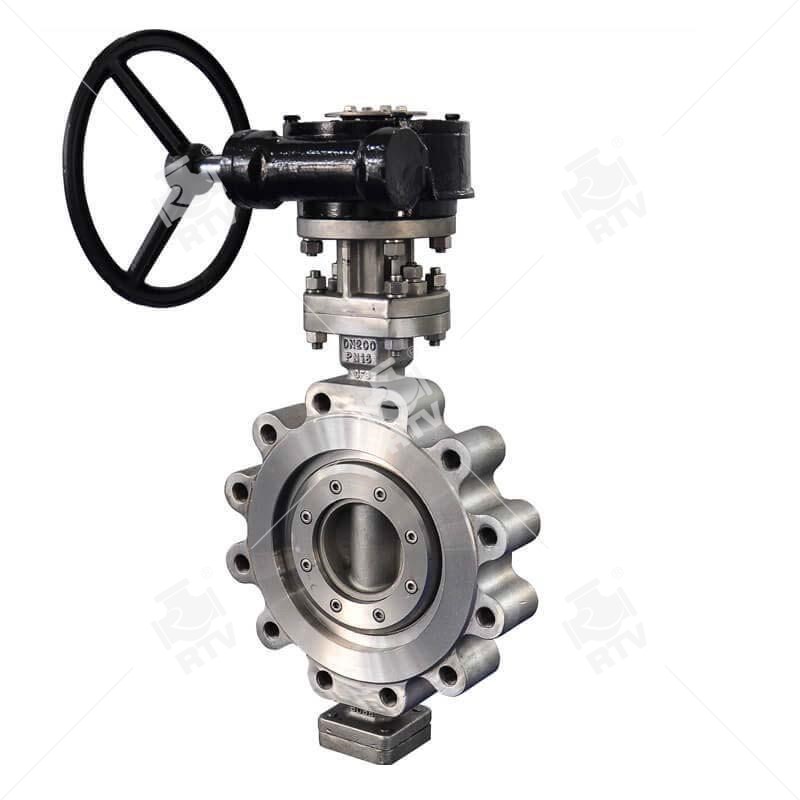

API609 Butterfly valve

API609 Butterfly valve

RTV Zhejiang Ruitong Valve Co.,Ltd provides high performance American standard butterfly valves. The main structural features of American standard flange butterfly valves are clamp type and flange type three eccentric structures. The main structural features of 815 and 830L series butterfly valves are convex around the valve body and designed as a single flange structure with screw holes. 815 and 830 series butterfly valves are widely used in petroleum, chemical and industrial environmental water treatment, high-rise buildings, water supply and drainage pipelines, etc.

American standard butterfly valves and American standard flange butterfly valves have the following characteristics:

Due to the use of a three eccentric structure, the sealing performance is reliable, ensuring that the butterfly plate does not contact the sealing seat when opened, eliminating uneven loads on the sealing seat, extending its service life, and ensuring reliable sealing performance. It has advantages such as high temperature resistance, wear resistance, and corrosion resistance.

Design standard: API609-83

Flange connection size: ANSI B 16.5

Structural length: ANSI B 16.10-1992

Pressure test: API 598-82

Adopting standards

Design standard: API609-83

Flange connection size: ANSI B 16.5

Structural length: ANSI B 16.10-1992

Pressure test: API 598-82

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
