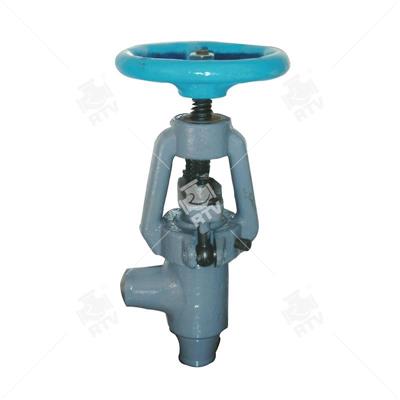

Working principle of forged steel globe valve:
The middle chamber of the forged steel socket welding globe valve adopts a self tightening sealing structure, which has good sealing performance. The two ends of the branch pipe are welded structures. The sealing surfaces of the valve disc and valve seat are made of Stellite cobalt based hard alloy overlay welding, which is wear-resistant, high-temperature resistant, and has good scratch resistance. The valve stem has undergone quenching and surface nitriding treatment. The depth of the valve cover packing box is reasonable, and the packing with corrosion inhibitor is reliable for sealing. The valve has an inverted sealing structure to ensure that there is no leakage from the valve stem during valve opening and operation. Widely used in fields such as petroleum, chemical, natural gas, metallurgy, chemical fiber, papermaking, urban construction, etc.
Features of forged steel globe valves:
1. The product design and manufacturing are in accordance with the ANSIB16.34 and E101 standards, and can be equipped with imported equipment for use.
2. The inner chamber of the valve adopts a pressure self tightening sealing structure, and the higher the inner chamber pressure, the better the sealing performance.
3. The sealing surfaces of the valve disc and valve seat are made of Stellite cobalt based hard alloy overlay welding.
4. The depth of the valve cover packing box is reasonable, the packing is added with corrosion inhibitor, the sealing is reliable, and the switch is stable.
5. The valve has an upper sealing structure to ensure that there is no leakage from the valve stem during valve opening and operation.
Design specification: Steel forged globe valves shall be manufactured in accordance with API602, BS5352,ANSI/ASME B16.34, Testing and acceptance shall be in accordance with API 598, and identification shall be in accordance with MSS SP-25.
Structural type:
1. Full bore or reduced bore
2. Structural length according to ANSI/ASME B16.10
3. Flange according to ANSI/ASME B16.5
4. Self sealing valve cover
5. Rising pole with bracket
6. Automatic adjustment of packing sleeve at both ends;
7. Body inverted seal
8. Integral valve body flange
9. Welding end according to ANSI/ASME B16.25
10. Ring connection valve body valve cover gasket
11. Bolted, threaded, welded, or self sealing valve covers with spiral wound gaskets

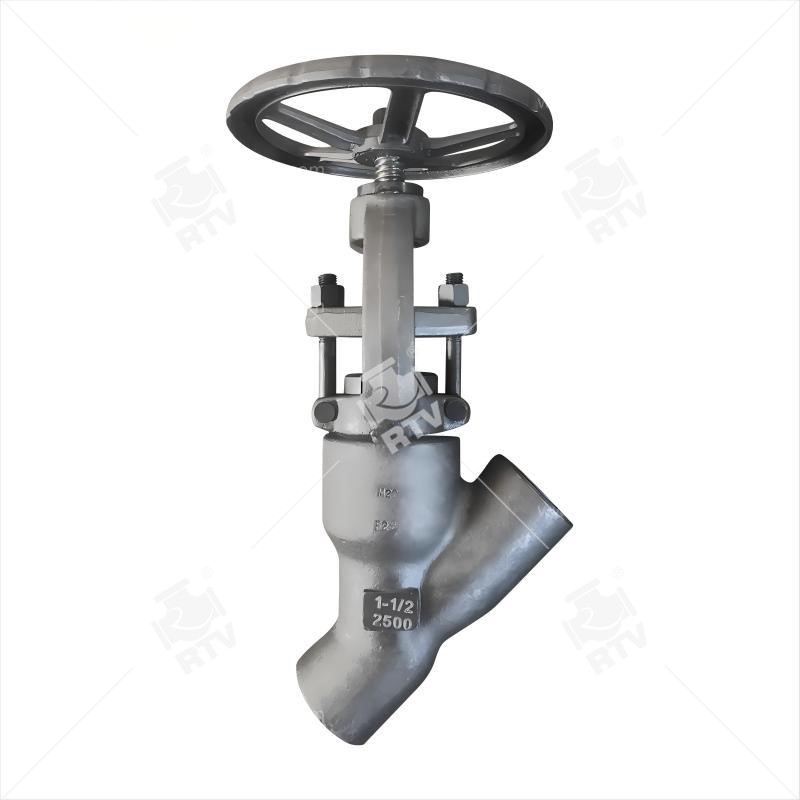

Y Type Globe Valves is suitable for cutting or connecting medium on the pipes of various working conditions such as the nominal pressure of PN1.6 to 6.4Mpa, the working temperature of -29 to 550Degree C, such as oil, chemical, pharmaceutical, chemical fertilizer, electric power industry and so on. Suitable medium is water, oil, steam, acid medium, etc. The operation methods are: manual and pneumatic.
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~550 Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
