RTV Ruitong Valve Co.,Ltd Strainer

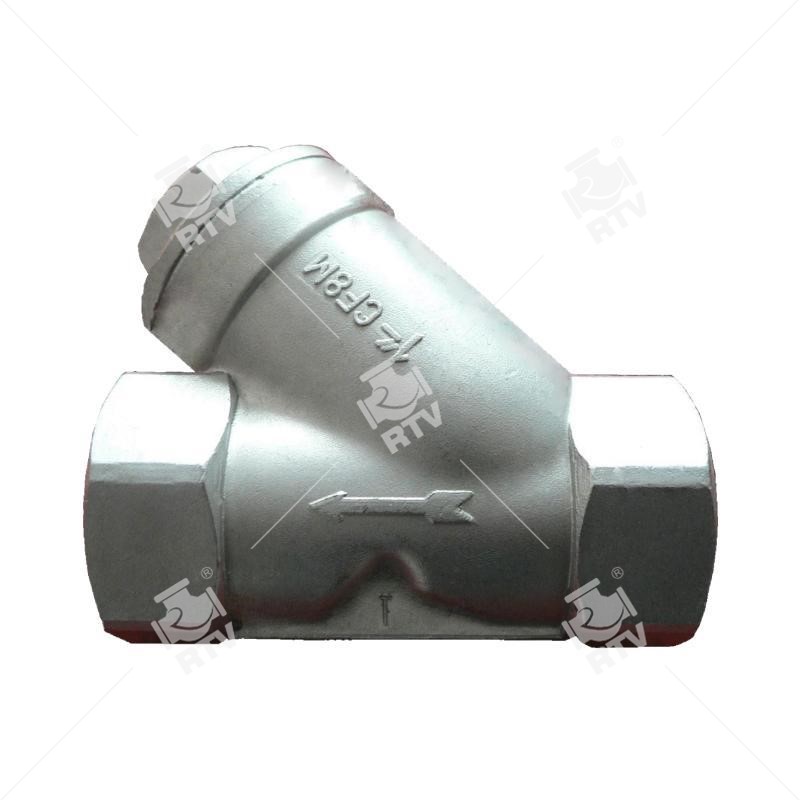

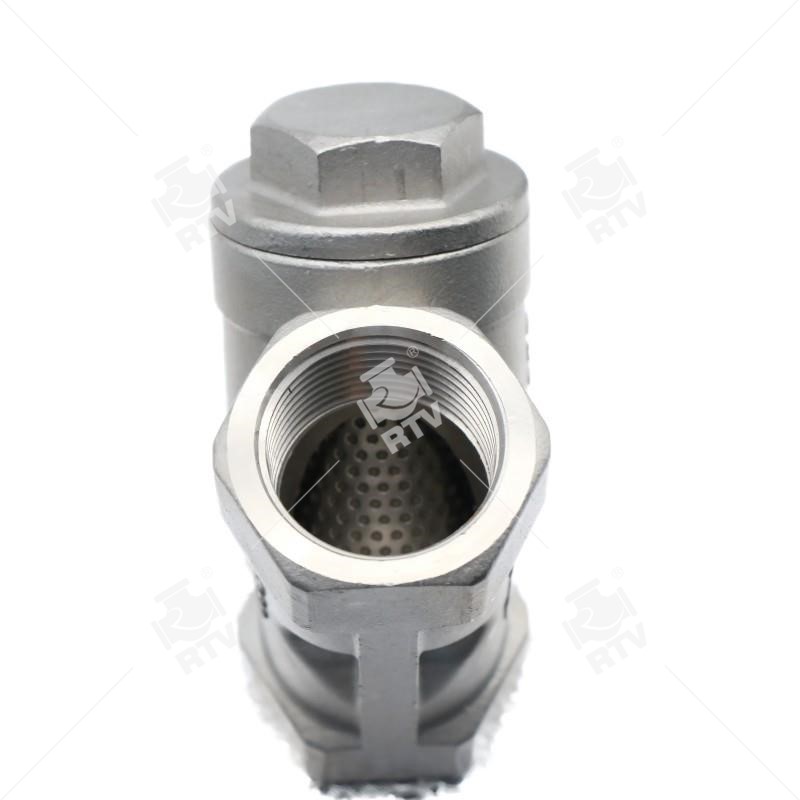

The RTV Cast Y Strainer is of medium is an indispensable channel series device, usually installed in the pressure reducing valve, pressure relief valve, water valve or other device set the import side, to eliminate impurities in the medium to protect the valve and equipment of the normal use. The filter has the advanced structure, small resistance, sewage and convenient. Suitable medium for water, oil and gas. User requirements can make the filter, which is basically the same shape (Y-type), all the internal parts of stainless steel, durable. When you need cleaning, simply remove the removable cartridge, remove the filter out impurities, you can reload the use of maintenance is very convenient. The filter body is small, filter fine eyes, small resistance, the effect of high installation and maintenance, convenient, low cost and short time of sewage, the average small models were just 5-10 minutes.
Internal thread, socket welding Y-type strainer to ensure that all equipment, pipe for pipe placement from impurities, rust, welding debris and other damage caused by congestion and to avoid the maintenance costs and production losses. Suitable for steam, air, water, oil pipelines and other systems, the protection of a variety of measuring instruments, pumps, valves, water heaters and other equipment vegetables.
Technical Specification
Normal Size Range: 1/4"-2"
Normal Pressure Rating: 200PSI/PN16
Material: WCB, CF8,CF8M,CF3,CF3M
Temperature Range: -29~425 Degree C
Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259
Inspection testing:API598
Investment casting body / bonnet
