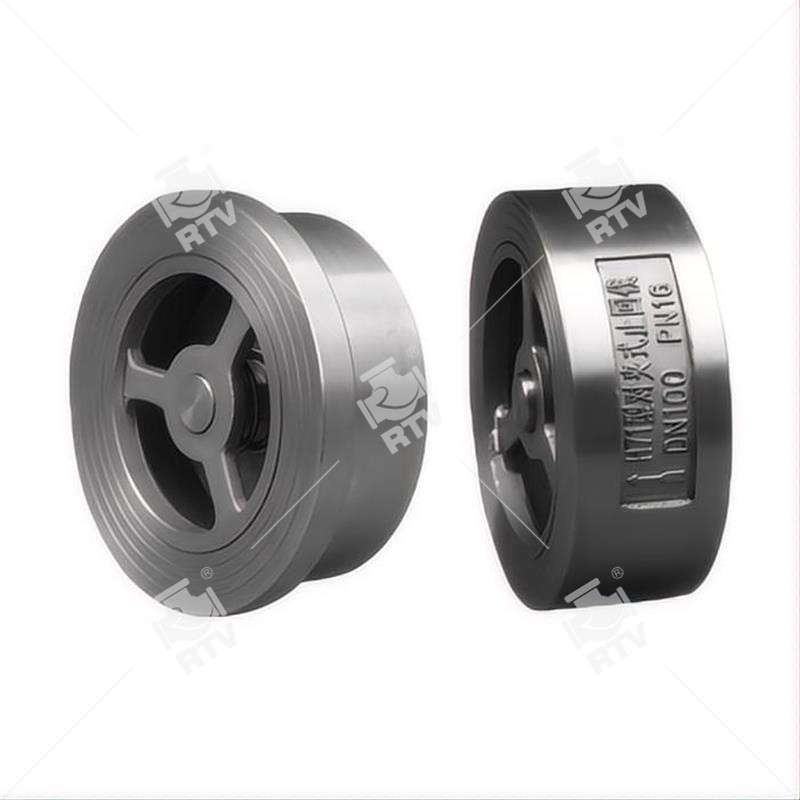

Single Disc Lift Check Valve

Single Disc Lift Check Valve

RTV Ruitong valve co.,ltd  China Single Disc Check Valve Exporter Dervos Supplies Single Disc Lift Check Valve, Wafer Ends, DN80, PN20, WCB, ASME B16.10, API 598, ASME B16.34.

Technical Specification

Normal Size Range: 2"-60"

Normal Pressure Rating: PN10~PN420, CLASS150~2500

Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M

Temperature Range: -29~425Degree C

Standards compliance

Design and Manufacture: API 594, API 6D, JB/T8937

Face to face(end to end): API 594, API 6D, JB/T8937, DIN3202

Flanged connection: ANSI B16.5, DIN2543~48, JB/T9112~24

Butt welded end: ANSI B16.25

Test and inspection: API598, DIN3230, JB/T9092



Valve Description:
Design standard: ASME B16.34.
Body material: WCB.
Nominal diameter: 3 Inch (DN80).
Pressure: 150 LB (PN20).
End connection: Wafer.
Face to face: ASME B16.10.
Working temperature: -29℃~ 350℃.
Test and inspection: API 598.

Product Range
Body material: Low Temperature Carbon Steel, Carbon Steel, Stainless Steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lb~2500 lb (PN16~PN420).
Working temperature: -196℃~ 600℃.
