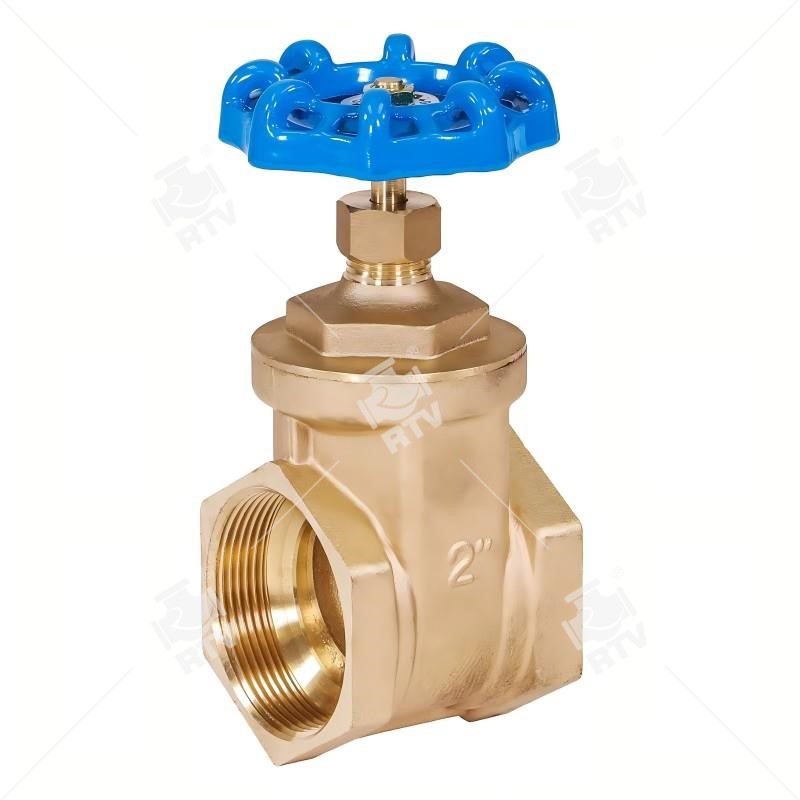

Brass, Bronze, Aluminum Bronze, Tin Bronze Thread gate valves
The structure is simple, and manufacturing and maintenance are relatively convenient.
Small work schedule and short opening and closing time.
Good sealing performance, low friction between sealing surfaces, and long service life.
Product range of internal thread gate valves
Body material: stainless steel
Technical Specification
Normal Size Range: 1/2"-4"
Normal Pressure Rating: 200PSI/PN16
Connection method: BSP, BSPT, NPT
Material: brass,Brass, Bronze, Aluminum Bronze, Tin Bronze
Temperature Range: -29~425Degree C
Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259,ISO288-1,ISO7/1
Working pressure: 200PSI/PN16
Type: Inside screwed bonnet, solid wedge, integral seat, full bore, non-rising stem and hand wheel.
Investment Casting body and cap.
Inspection testing: API598
Investment casting body / bonnet
Pressure temperature rating: 200 PSI (PN16)
Pressure temperature rating: 350 deg. F
Inside screw and screwed bonnet, wedge disc, integral seat, non-risi.
