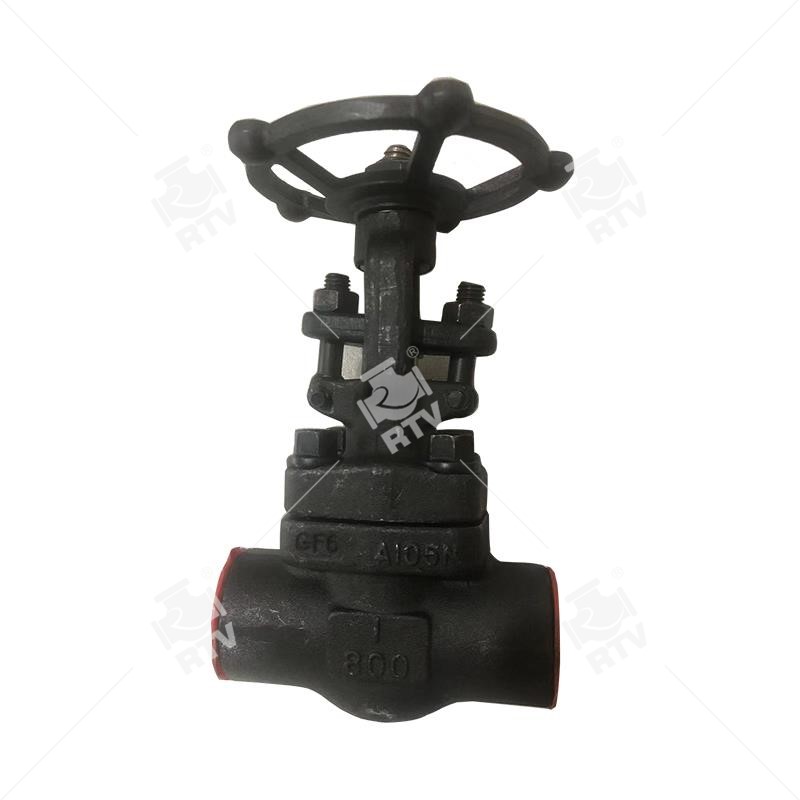

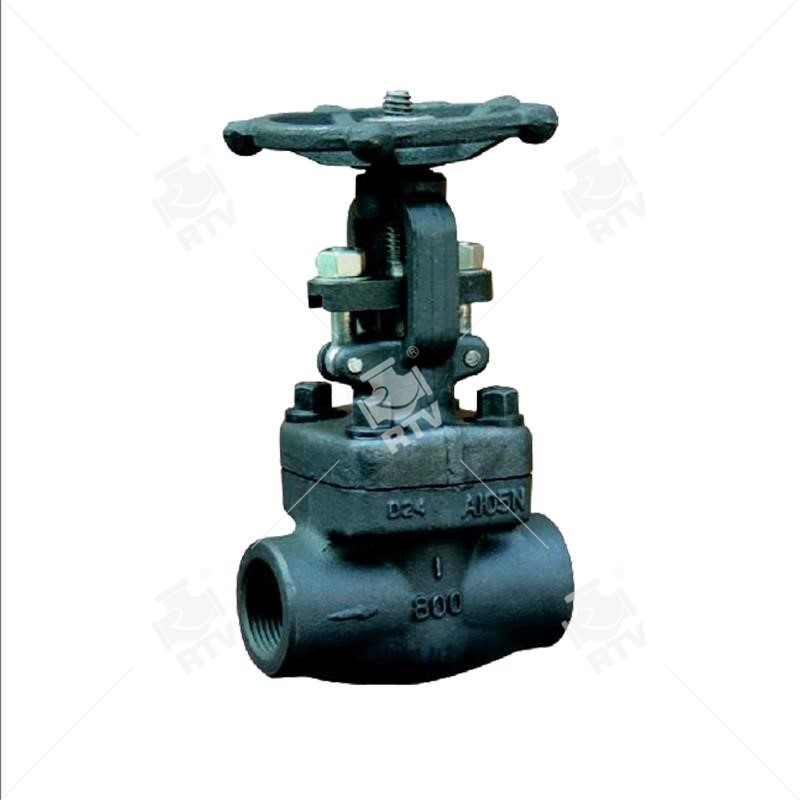

NPT Forged Steel  Gate Valve

NPT Forged Steel Gate Valve

RTV Ruitong valve NPT Forged Steel Gate Valve are primarily used for stop valves fully opened or fully closed .They are not normally considered for throttling purposes,but more for slurries,viscous fluids,etc. Gate valves are characterized by a traveling wedge ,which is moved with the operation of the stem nut. Gate valves usually have a minimum pressure drop when fully open,provide tight shut-off when fully closed,and remain relatively free of contamination buildup.

Technical Specification
Normal Size Range: 1/2"- 4"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C

Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
