The pneumatic three-way ball valve produced by Ruitong Valve (T-type, L-type) provides the following parameters:
① Pneumatic three-way ball valve product name and model.
② Flange pneumatic three-way ball valve diameter, operating temperature and medium.
③ Whether the flange pneumatic three-way ball valve comes with accessories so that we can select it correctly for you.
2、 If the design unit has already selected our company's flange pneumatic three-way ball valve model, please order directly from our sales department according to the flange pneumatic three-way ball valve model.
3、 When the usage situation is very important or the environment is complex, please provide design drawings and detailed parameters as much as possible, and our valve engineers will provide technical support for you. If you have any further questions, please call us and we will do our best to provide you with high-quality service!

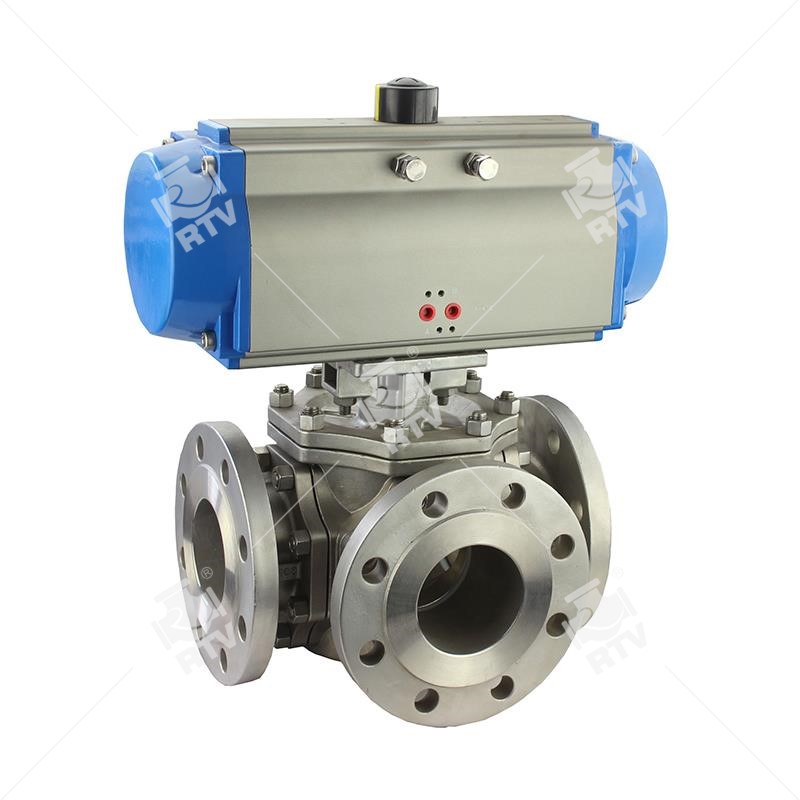

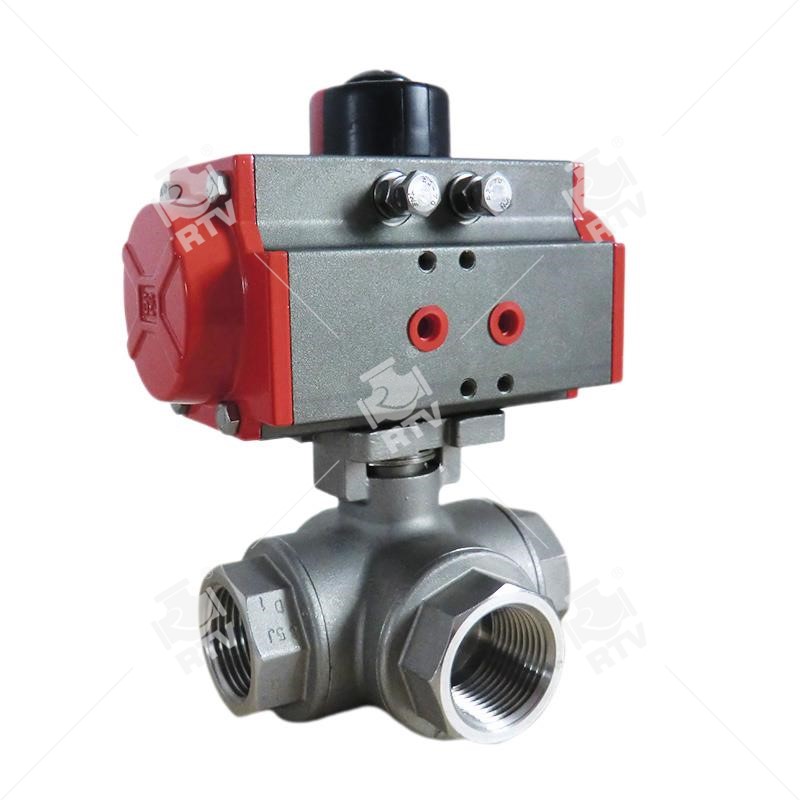

Pneumatic three-way ball valve is a three channel rotary ball valve used for medium diversion, merging, and flow direction switching. Any pipeline can serve as an inlet or outlet. There are two types of pneumatic three-way ball valves: pneumatic three-way L-shaped ball valve and pneumatic three-way T-shaped ball valve, which can meet different business process requirements. Principle and function: The pneumatic three-way L-shaped ball valve is used to cut off two of the three pipelines, and the pneumatic three-way T-shaped ball valve realizes the merging and diversion of the three connected pipelines.
Performance characteristics:
Pneumatic three-way ball valve has the advantages of compact structure, light weight, good sealing performance, and convenient maintenance; Control the separation and merging of media in pipelines. Widely used in pipelines for gases, liquids, vapors, oil products, etc.
1. Design and Manufacturing: GB12237-89 API608、API 6D、JPI 7S-48、BS5351、DIN3357.
2. Flange size: JB/T74-90 (JB74-90) GB9112～9131、HGJ44～76、SH3406、ANSI B16.5、JIS B2212～2214、NF E29-211、DIN2543.
3. Structural length: GB12221-89 ANSI B16.10、JIS B2002、NF E29-305、DIN3202.
4. Inspection main test: JB/T 9092, API 598.
