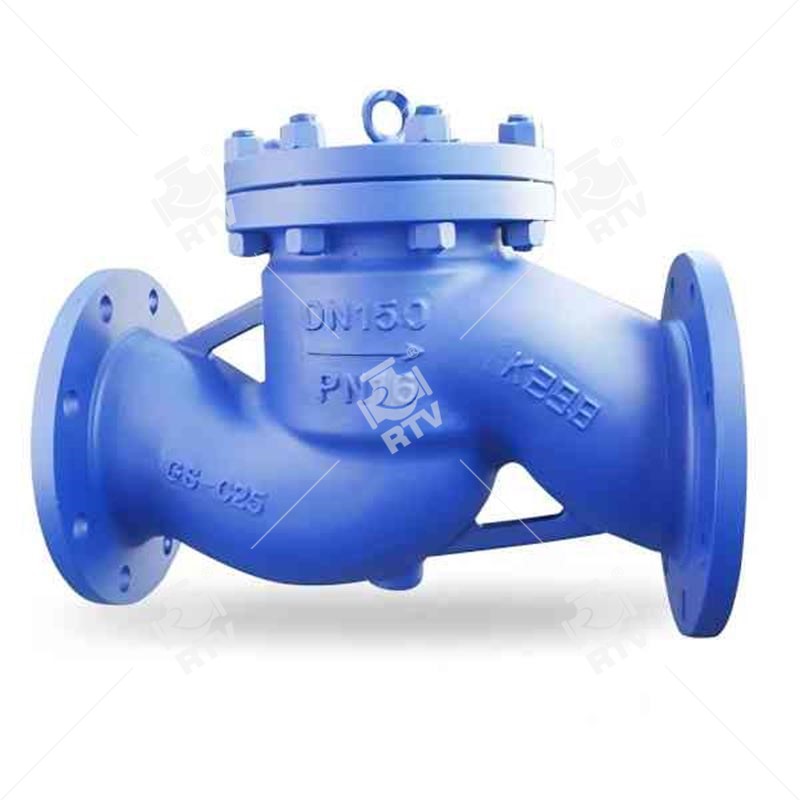

Lift check valve, cast steel check valve
Material: GS-C25
Seat sealing:Metal
Pressure: PN16
Size:NPS 100mm
Connection: RF
Application Standard:
Design:DIN3840,BS EN 1868
Face-to-face:DIN3202 BS EN 558-1
Flanged Ends:DIN2543,DIN2544,DIN2545,DIN2546,DIN2548BS, EN1092-1
Inspection Test :DIN3230,BS EN12569
Materials: carbon steel, alloy steel, stainless steel, duplex steel,bronze, Inconel,Hastelloy,Monel, Incoloy etc.
Carbon Steel A105N,F11,F22,F5,F9 or WCB,WCC, WC6,WC9,C5, C12 etc.
Low Carbon Steel LF2 or LCB,LCC etc.
Stainless Steel F304,F316, F316L,F347 or CF8, CF8M, CF3M,CF8C etc.
Duplex Steel such as F51,F53, F55 or 4A,5A,6A, CD3MN, CD2MWCuN, CN7M (Alloy 20) etc.
Bronze C95800, RG5 etc.
Other special materials like Inconel 625 could be supplied by request.
Design standard: DIN 3356.
Body material: GS-C25.
Nominal diameter: DN150.
Pressure: PN16.
End connection: RF.
Face to face: DIN3202.
Working temperature: -29℃~ 400℃.
Test and inspection: EN12266.1.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lb~2500 lb (PN16~PN420).
Working temperature: -29℃~ 400℃.
