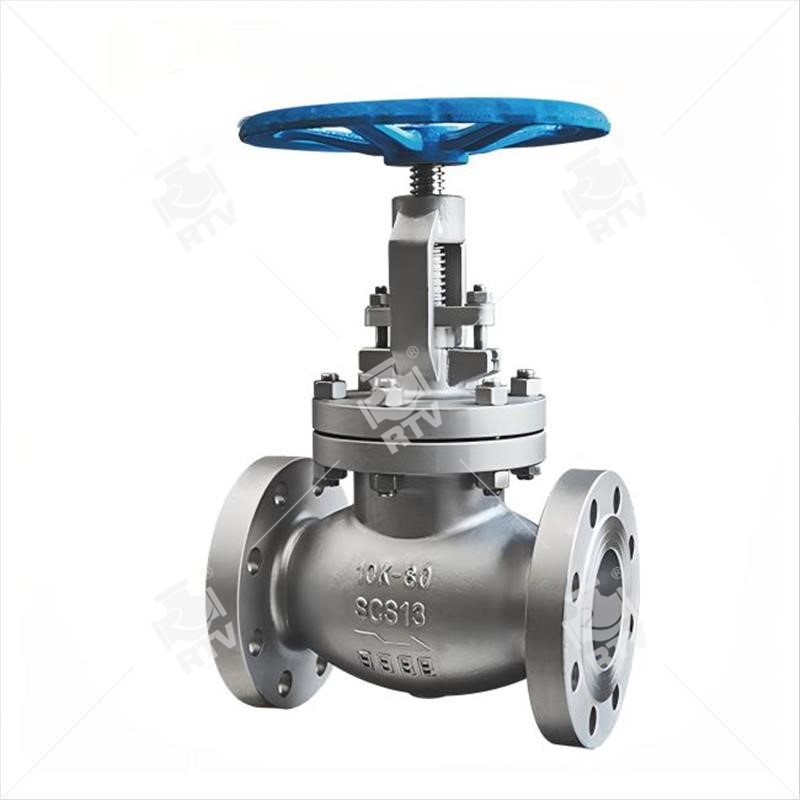

The Japanese standard SCS13 10K Globe Valve produced by RTV Ruitong Valve and the JIS Japanese standard flange globe valves are mainly used to connect or cut off the medium in pipelines. They are suitable for various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with a nominal pressure of 10K-20K and a working temperature of -29~550 ℃. They can cut off or connect the medium in pipelines. The driving methods include manual, gear transmission, electric, pneumatic, etc. A shut-off valve is a commonly used shut-off valve and is generally not used to regulate flow.
Globe valves are suitable for a wide range of pressure and temperature, but are generally used for medium and small diameter pipelines.
Standard for Japanese standard shut-off valves:
Design and manufacturing according to JIS B2071
Structural length according to JIS B2002
The flange connection size shall be in accordance with JIS B2212 B2214
Inspection according to JIS B2003
Japanese standard globe valve, JIS Japanese standard flange globe valve design standard
JIS 10K/20K Globe Valve WCB/SS
Size Range: 1/2“-24”/DN15-DN600
Operate: Handhweel,Bevel gear,Pneumatic,Electric-Motorized
Working Pressure: JIS 10K/20K
Body Materials: WCB/CF8/CF8M
Disc Materials: WCB 13Cr/WCB STL/CF8/CF8M
Bonnet Materials: WCB/CF8/CF8M
Stem Materials: 45#/2Cr13/F304/F316
Seat Ring Materials: A105 13Cr/A105 STL/CF8/CF8M
Stem Nut: DI/Copper Alloy
Application for: Water,Oil &Gas
Shell test：1.5 times
Seat test：1.1 times
Payment: T/T, D/P or L/C
Lead Time：5-30 days
