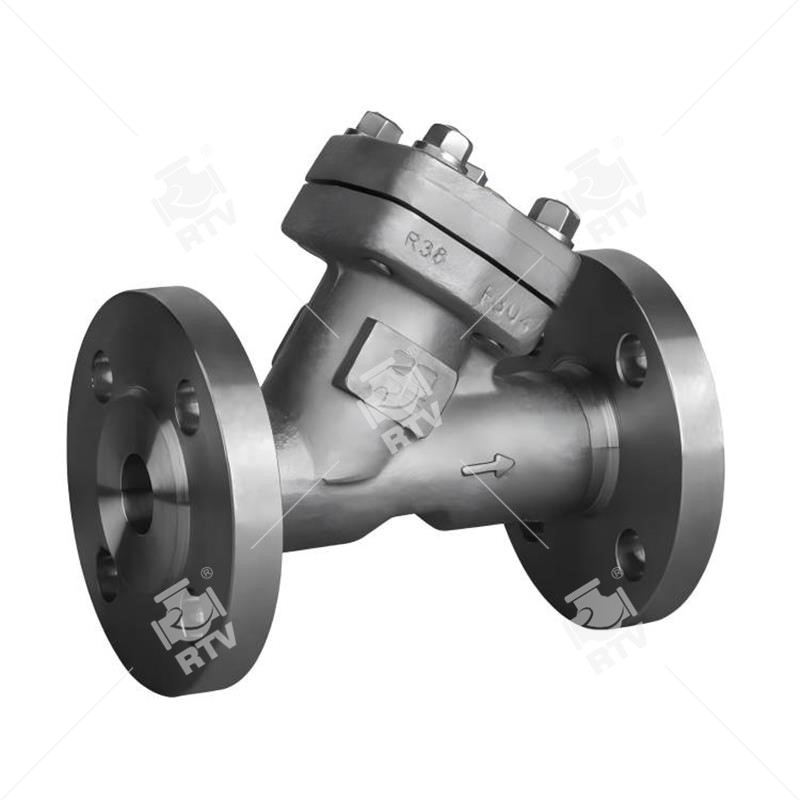

Forged Steel Check Valve
RTV Y Type Piston Check Valves is, also known as one-way valve, non-return valve and so on, is an automatic valve opening and closing itself by the force of flowing medium. And Forged check valve is mainly used for preventing the backflow of medium, the reversal of pump & its motor and the discharging of container. By different structure, it could be divided into forged swing type check valve & forged lift type check valve; If by different connection, it could be flanged forged check valve, socket welded forged check valve and etc. The valve is used as boiler feed water and steam cut-off valve. It has integrated function of lift check valve and globe valve or angle valve.
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
