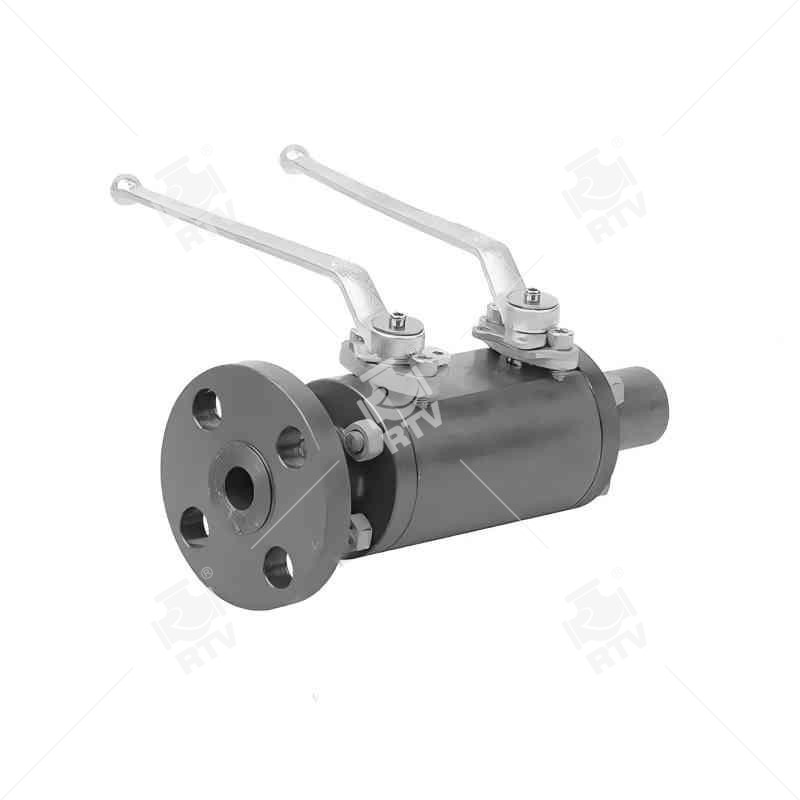

Double Block Bleed Ball Valve Flange and Thread

Double Block Bleed Ball Valve Flange and Thread

Model No.: RTV-201999-DBBBV-02

RTV Valcve As a leading Double Block and Bleed Ball Valve Maker, we take pride in presenting a high-performance solution crafted with precision and reliability for critical applications. Our valve is designed to meet stringent industry standards and deliver exceptional fluid control. Our Floating Type Double Block and Bleed Ball Valve ensure optimal performance in critical processes.

Name: 3 Piece DBB Ball Valve
Standard: API 608
Size: DN15-100, 1/2inch  to 4 Inch
Pressure: Class150 LB-Class2500LB, PN20-PN450
Temperature Of Media: -29℃ To 120℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: NPT, RF, RTJ, SW
Feature: Flanged Floating Ball Valve, DBB Double Block And Bleed Ball Valve, Metal Seated


Item Ball valve
Certification CE,TS,ISO9001,ISO14001,ISO18001,TS ACE,GOST
Connection form flange
Body material forging
Seal material Double seal construction
Feature Easy disassembly and assembly


Product Range

Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-2500 LB

Twin Ball DBB Valve is offered in 3 PC side entry bodies, the design adopts the structure of two balls in a series. Twin Ball DDB Valve are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.

1. Double Block And Bleed (DBB)
2. Low Operating Torque
3. Emergency Sealing Device
4. Fireproof Structure Design
5. Anti-static Structure
6. Reliable seat sealing structure
7. Single Sealing (automatic Pressure Relief In Middle Cavity Of Valve)
8. Double Sealing (double Piston)
9. Safety Relief Device
10. Special Structure Of Automatic Pressure Relief Towards Upper Stream
11. Blow-out Proof Stem
12. Corrosion Resistance And Sulfide Stress Resistance
13. Extension Stem

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
