Quick Detail
Design Standard: DIN 3356.
Body Material: GS-C25.
Nominal Diameter: DN200 (8 Inch).
Pressure: PN40.
End Connection: RF.
Face to Face: EN 558.
Working Temperature: -29℃~ 425℃.
Mode of Operation: Handwheel.
Test and Inspection: EN 12266.
Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~ 560℃.
Valve descriptions

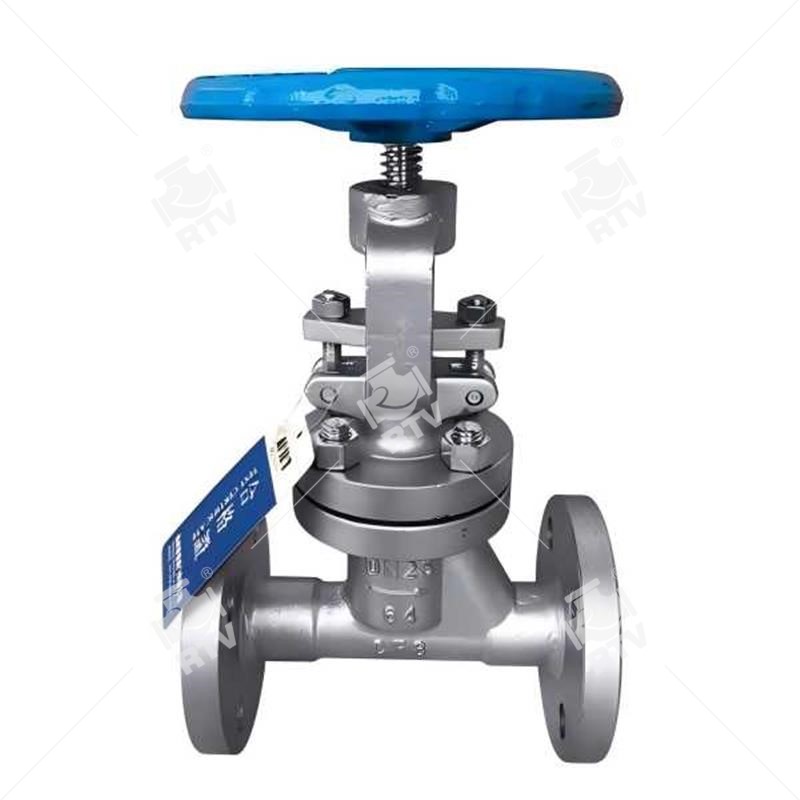

Name: ASTM A351 CF8M Small Size Globe Valve.
Design: DIN 3356.
Body: ASTM A351 CF8M.
Nominal size: DN50.
Nominal class: PN40.
Connection ends: RF Flanged ends.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.
Other features
Full bore
Rising stem
Bolted bonnet
Flat sealing
Short stroke for easy opening or closing
