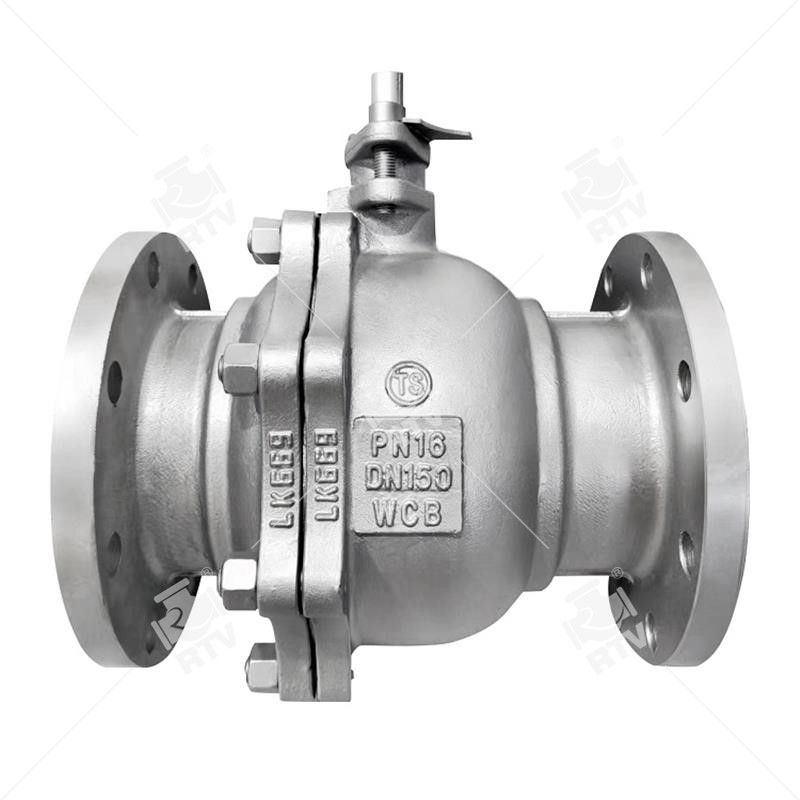

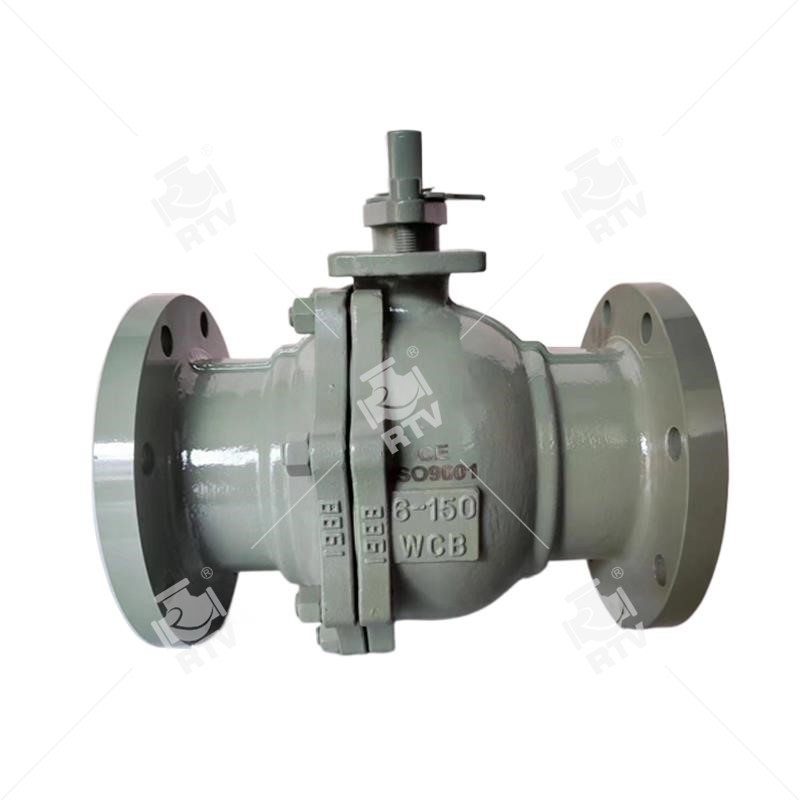

Carbon steel ball valve

Carbon steel ball valve

The Carbon steel ball valves produced by RTV Ruitong Valve and the GOST9544 standard ,American Standard API Standard,DIN Standard ,JIS Standardflange ball valves are suitable for the medium of petrochemical industry, water, gas pressure range of 1.6-40 (Mpa), suitable for temperature range of 100-400 (℃). The main materials are stainless steel and carbon steel. Working medium: suitable for corrosive media such as water, gas, oil, ammonia, etc. Full bore flow rate butt welding end according to ANSI B16.5

1.Specification:

1/2"-24"(DN15--DN600mm)

2.Design standards:

ASME B16.34;DIN3357; DIN3202;GOST33259 ;JIS22007

3.Inspection standards:

API 598 ;EN12266;GB/T13927

4.Pressure:

150Lb--4500LB,5K-63K,PN10-PN700

5.Seat material

PTFE, RPTFE, PEEK, PCTFE


If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
