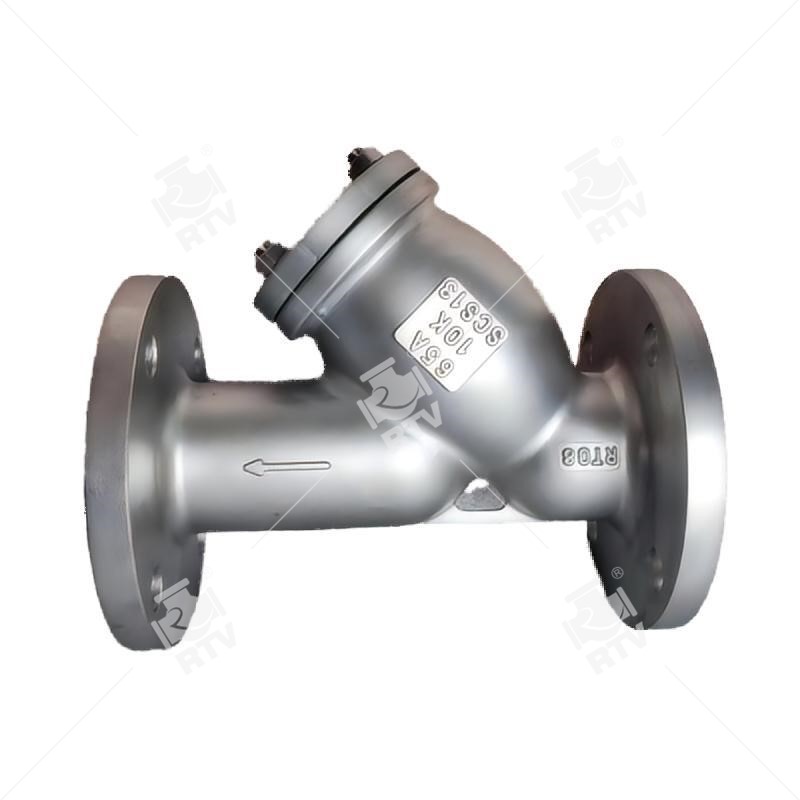

10K Stainless steel Y Type Strainer
The RTV Cast Y Strainer is of medium is an indispensable channel series device, usually installed in the pressure reducing valve, pressure relief valve, water valve or other device set the import side, to eliminate impurities in the medium to protect the valve and equipment of the normal use. The filter has the advanced structure, small resistance, sewage and convenient. Suitable medium for water, oil and gas. User requirements can make the filter, which is basically the same shape (Y-type), all the internal parts of stainless steel, durable. When you need cleaning, simply remove the removable cartridge, remove the filter out impurities, you can reload the use of maintenance is very convenient. The filter body is small, filter fine eyes, small resistance, the effect of high installation and maintenance, convenient, low cost and short time of sewage, the average small models were just 5-10 minutes.
Technical Specification
Normal Size Range: 1/2"-24" (DN15-DN600)
Normal Pressure Rating: PN16~PN420, Class150~2500LB
Material: WCB, CF8,CF8M,CF3,CF3M
Temperature Range: -29~425 Degree C
Standards compliance
Design and Manufacture: JIS10K
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
Test and inspection: API598, API6D
Butt welded end: ANSI B16.5
Standards compliance
Design and Manufacture: JIS10K
Face to face(end to end): ANSI B 16.10
Flanged connection: JIS10K B-2002
Butt welded end: ANSI B16.25
Test and inspection: API 598
1. The strainer is called Y-Pattern Strainer as its strainer screen and valve body form a sharp angle like the letter "Y".
2. Y-Pattern Strainer is usually composed of the valve body, the double-layer stainless steel strainer screen as well as the sealing washer.
3. The core part of strainer is a strainer screen which is composed of the strainer screen frame and the stainless steel wire.
4. Y-Pattern Strainer is a product that separates solid particles from fluids, improves purity of the product, and guarantees equipment safety.
