BW Y Type Globe Valve Class1500lb 8inch

BW Y Type Globe Valve Class1500lb 8inch

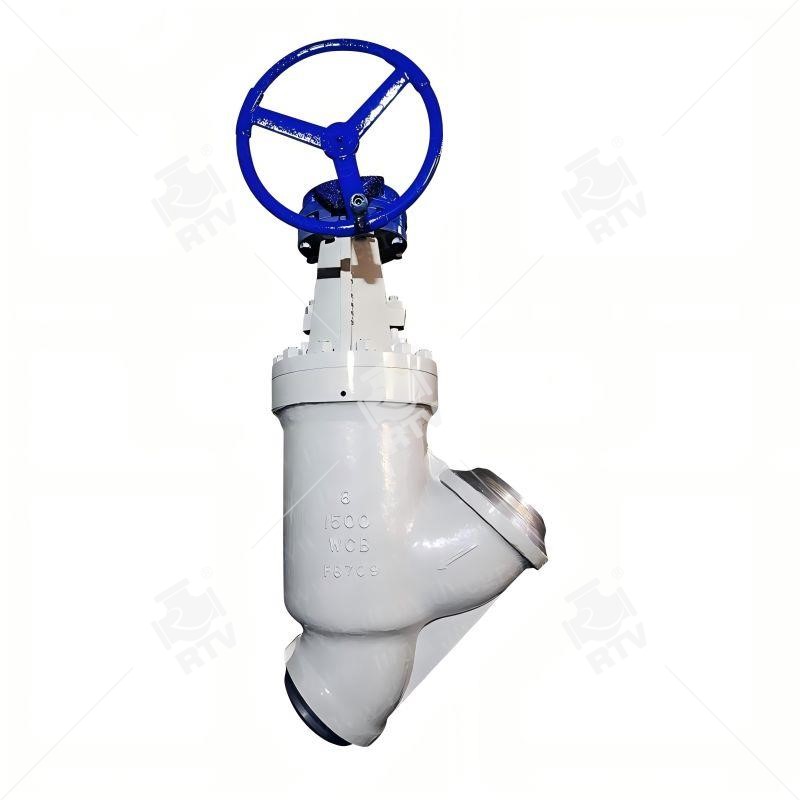

The RTVBW Y Type Globe Valve Class1500lb 8inch Exporter in China: Butt Weld Y Pattern Globe Valve, Carbon Steel ASTM A216-WCB, 8 Inch, Class 1500, ASME B16.34, BS 1873.

Product name: Y Pattern Globe Valve.
Design: ASME B16.34, BS 1873.
Material: A216-WCB A217-WC6/9 C11C 12 C5 ASTM A352 LCC.
Nominal size:2inch- 24 Inch.
Nominal class: 150LB-2500 LB.
End Connection: BW.
Face to face: ASME B16.10.
Test and inspection: EN12266-1.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 24 Inch (DN50 - DN600).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - 573℃.
