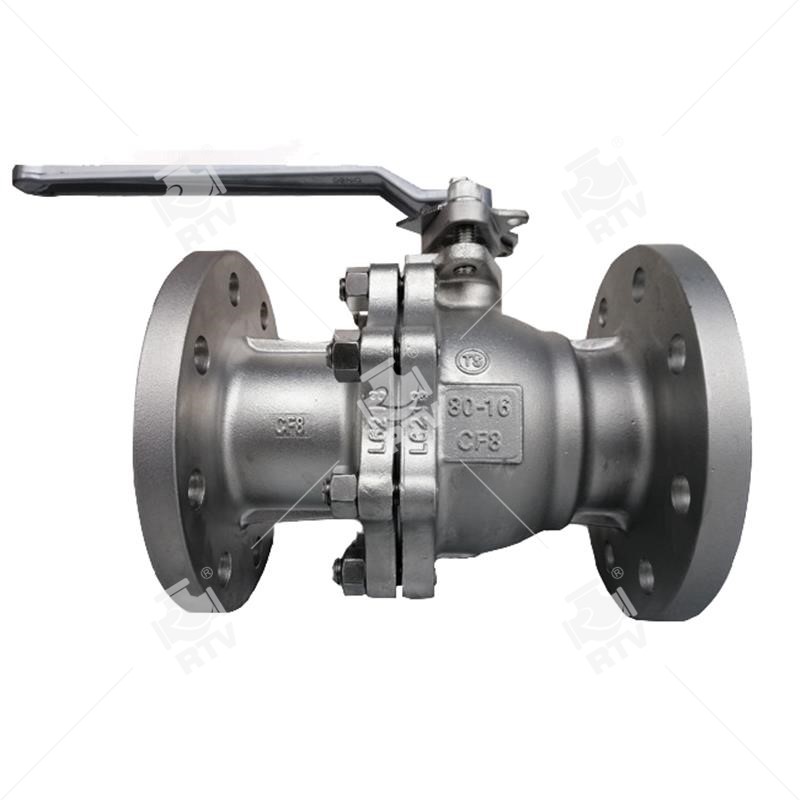

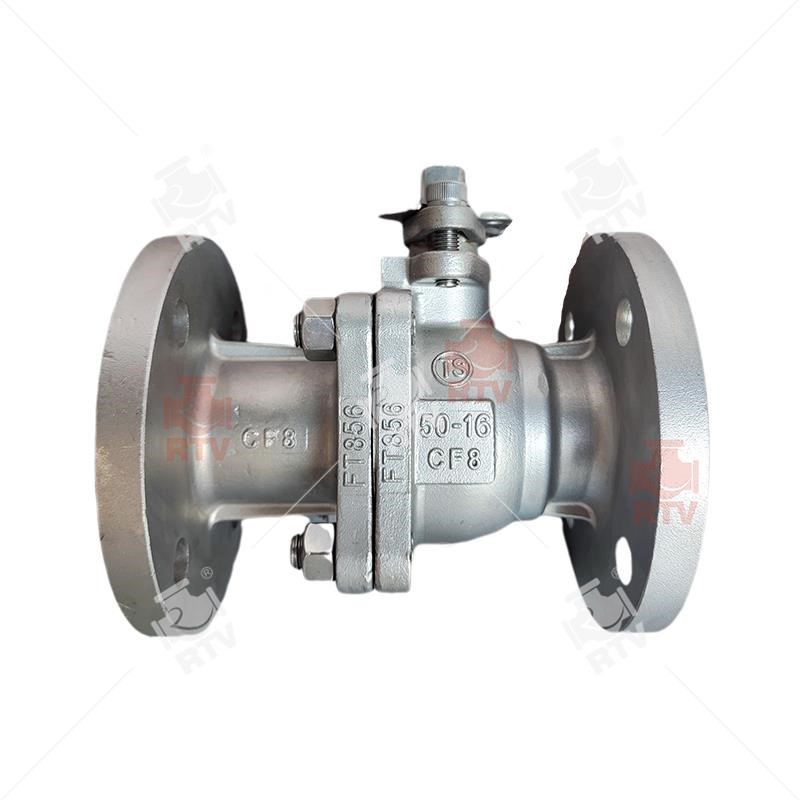

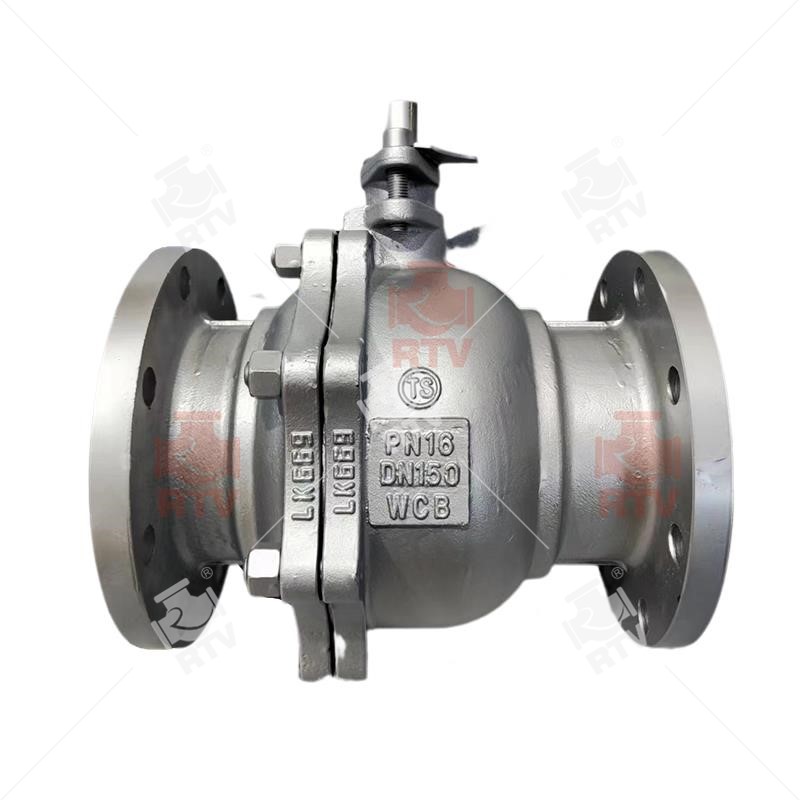

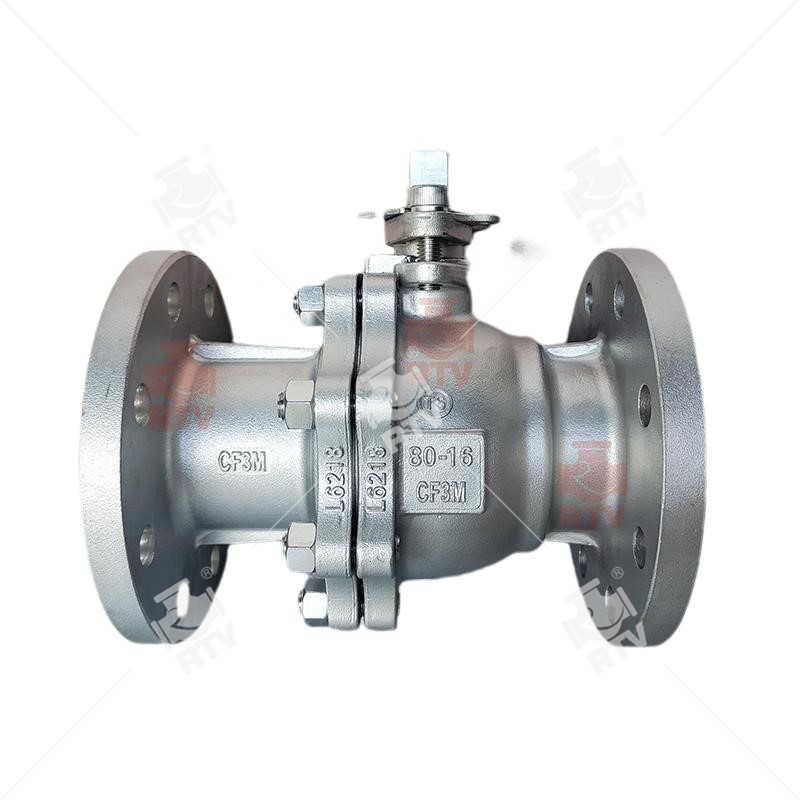

Q41F Russia standard ball valve is used to cut off or connect media in pipelines. Different materials are selected and can be used for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea, etc. The German standard ball valve can close tightly with a very small rotational torque. The completely equal valve body cavity provides a small resistance and straight flow path for the medium. The main characteristics of German standard ball valves are their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene.
Product standards
Design standard:GOST 33259
Wall thickness standard: GB/T12221
Fire Safety Standard: API 307 ISO 10497
Structural length Face to Face: GOST 9544
End flange standard:GOST 33259
Inspection&Testing: GB/T13927
Product features
The valve stem is equipped with anti-static devices for Ball Stem Body
The valve stem is designed with a Blowout Proof stem
Pressure Balance Hole in Ball Slot
Design of actuator platform using Iso 5211 bracket installation
Built in ISO 5211 Bracket Mount For Easy Automation
