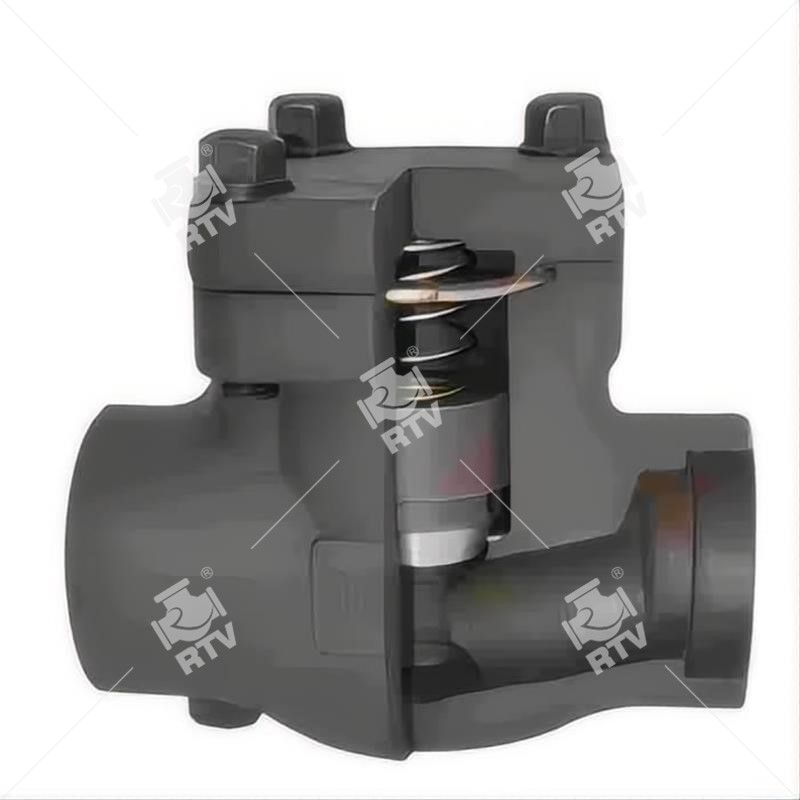

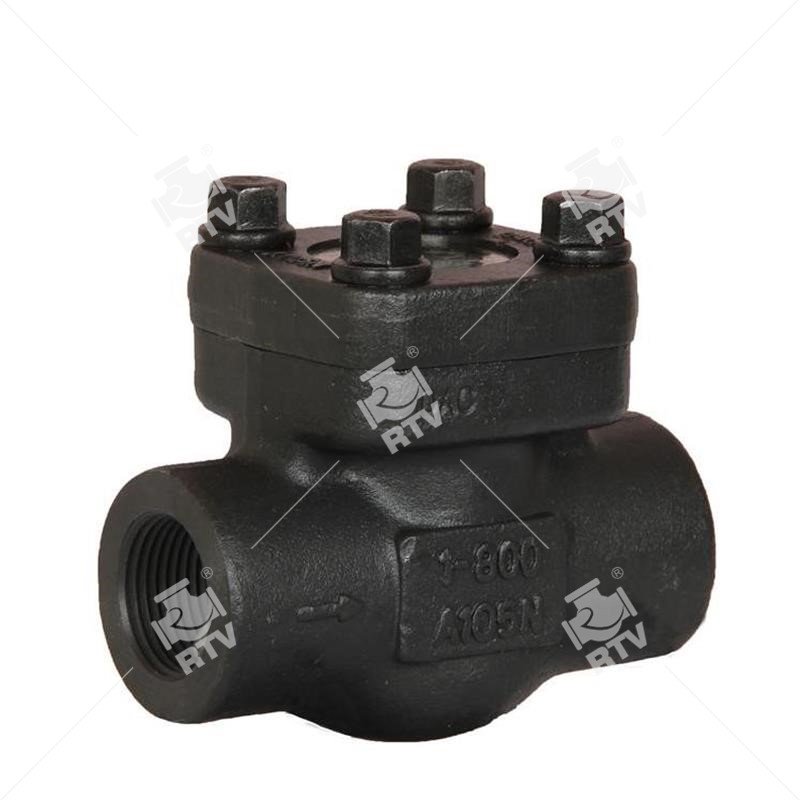

Forged Steel Check Valve
The RTV Forged Piston Check Valves is a valve which is automatically opened and closed by the flow of the medium itself, and is used to prevent the reverse flow of the medium. It is also called a reverse check valve, a one-way valve, a countercurrent valve, and a back pressure valve. The check valve is an automatic valve. Its main function is to prevent the backflow of the medium, prevent the reversing of the pump and drive motor, and the discharge of the container medium. The check valve can also be used to supply pipelines where the pressure may exceed the system pressure. Check valves can be divided into swing check valves (with center of gravity rotation) and lift check valves (along the axis).
Technical Specification
Normal Size Range: 1/2"- 2"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
