By selecting different materials, it can be suitable for various media such as water, steam, oil, acids, acetic acid, strong oxidizing media, and urea. The driving mode is manual, bevel gear transmission, and electric.
① The product design and manufacturing meet the requirements of advanced foreign standards, with reliable sealing and excellent performance.
② The structural design is compact and reasonable, with a beautiful appearance.

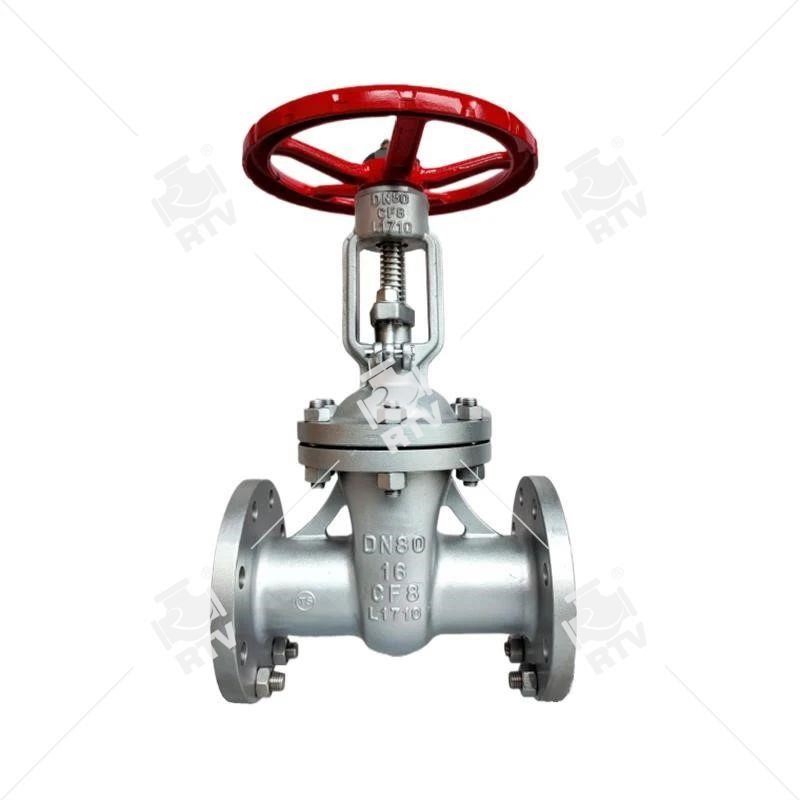

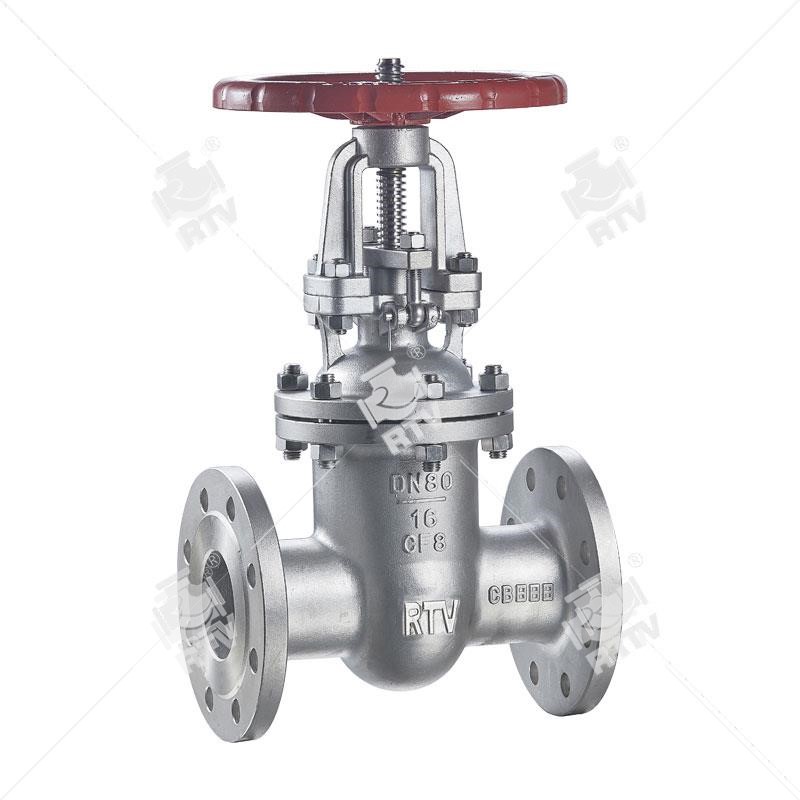

③ Adopting a wedge-shaped elastic gate structure and equipped with rolling bearings for medium and large diameters, the opening and closing are easy.
④ The valve body material variety is complete, and the packing and gasket are reasonably selected according to actual working conditions or user requirements, which can be suitable for various pressure, temperature, and medium working conditions.
⑤ Adopting various domestic and foreign piping flange standards and flange sealing surface types to meet various engineering needs and user requirements.
RTV Ruitong Valve company is a industry valves manufacturer, including DIN F5、DIN F7、DIN F4 Rising Stem Gate Valve, DIN F15 Non-Rising Stem Gate Valve, DIN F1、DIN F2 Globe Valve, DIN F32 Angle Globe Valve, DIN F1、DIN F6 Swing Check Valve, DIN F1 Lift Check Valve, DIN Cast Iron Valve etc, Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
Technical Specification
Normal Size Range: DN50-DN600
Normal Pressure Rating: PN10~PN40
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: DIN3352
Inspection and Test: ISO 5208,EN12266
Flanged ends dimension: EN 1092-1,DIN2544,DIN2545,DIN2546
Butt-welded ends dimension: EN12627
Face to face and end to end: DIN3202,EN558-1,ISO5752
Pressure-temperature ratings: DIN2401
Test & Inspection: DIN3230
