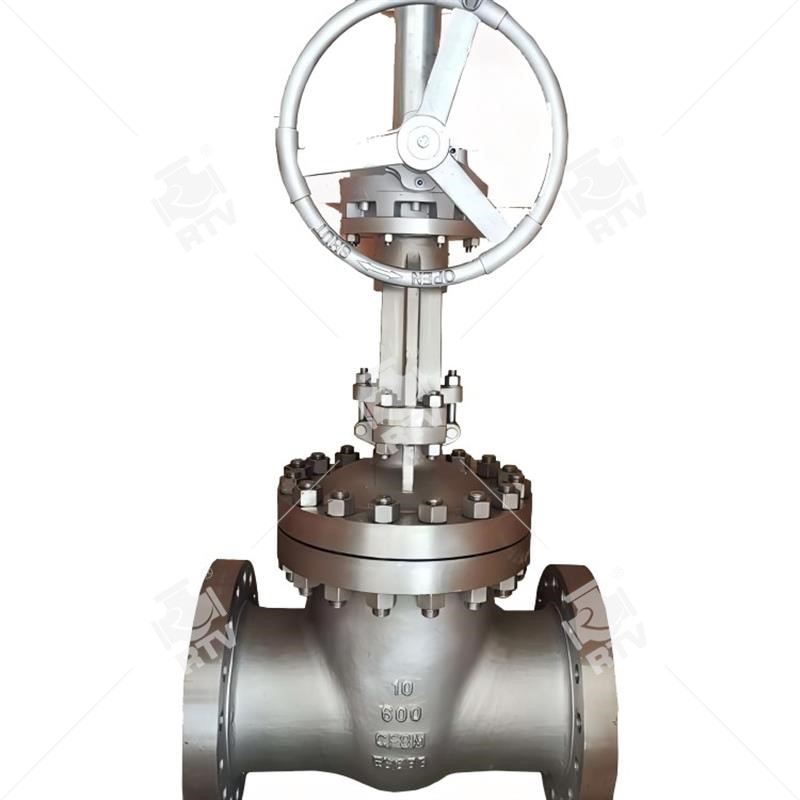

Gear Operation Stainless Steel 600LB Gate Valve

Gear Operation Stainless Steel 600LB Gate Valve

The product design and manufacturing comply with the requirements of the American National Standard ANSIB16.34 and the American Petroleum Institute Standard API600
Compact structure, small volume, good rigidity, and safe and reliable sealing.

Size range(s)

NPS 2 - 36
(DN 50 - 900)

Pressure rating

ASME Classes 150, 300, and 600

Standard connections

Flanged



Features and benefits

  • Packing chamber has nickel overlay to protect from severe alkylation conditions and to guarantee low fugitive emissions.
  • Stem is made from solid age hardened K-Monel® 500 for increased strength and corrosion resistance.
  • All of the critical areas of castings are of APIRT quality in accordance to B16.34.
  • Bonnet joint is precision machined and has a special surface finish for extended service life.
  • Monel® seats are single seal welded-in using state-of-the-art metallurgical technology to ensure zero leakage behind and around the seats, preventing in-service corrosion
  • Fully encapsulated gasket design with metal-to-metal body to bonnet contact for optimal and controlled gasket compression.
  • Body/bonnet wall thickness is in accordance to higher limits of API 600 offering one of the highest corrosion resistance capacities in the market.
  • HF acid detecting paint allows for an immediate visual detection when exposed to acid or acid vapors to ensure valve integrity
  • Fugitive emissions qualified to API 624 and ISO 15848-1
  • Flexible round wedge pioneered by Velan assures valve tightness and compensates for seat distortion and body deformation.
